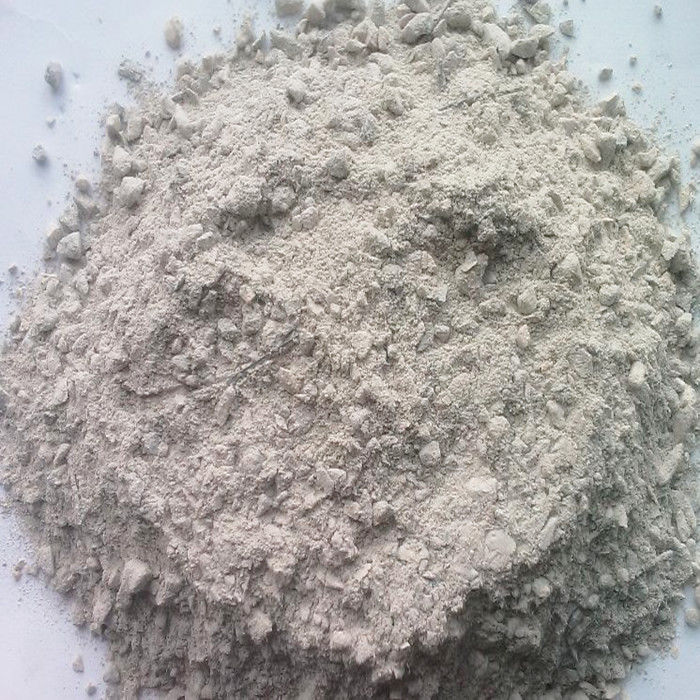

Corundum Refractory Castables Good Thermal Shock Resistance

Product Details

Place of Origin: Henan, China

Brand Name: HongTai

Model Number: hongtai

Payment & Shipping Terms

Minimum Order Quantity: 2 tons

Price: CN¥1,808.98-3,617.95/tons

Get Best Price
Highlight:

Corundum Refractory Castables

,

Good Thermal Shock Resistance Refractory Castables

,

Thermal Shock Resistance Refractory Castables

Shape:
Powder
Material:
CASTABLE
SiO2 Content (%):
Interentional Standard
Al2O3 Content (%):
>48%
MgO Content (%):
Interentional Standard
CaO Content (%):
2.5%
Refractoriness (Degree):
Common (1580°< Refractoriness< 1770°)
CrO Content (%):
0
SiC Content (%):
0.2%
Product Name:
Refractory Castable
Bulk Density(g/cm3):
2.0-2.5g/cm3
Application:
Industrial Furnaces
Raw Material:
Corundum
Certificate:
ISO BV
Feature:
Thermal Shock Resistance
Cold Crushing Strength(MPa):
25-45 Mpa
Color:
Light Grey
Usage:
Refractoy
Al2O3:
40%-88%
Shape:
Powder
Material:
CASTABLE
SiO2 Content (%):
Interentional Standard
Al2O3 Content (%):
>48%
MgO Content (%):
Interentional Standard
CaO Content (%):
2.5%
Refractoriness (Degree):
Common (1580°< Refractoriness< 1770°)
CrO Content (%):
0
SiC Content (%):
0.2%
Product Name:
Refractory Castable
Bulk Density(g/cm3):
2.0-2.5g/cm3
Application:
Industrial Furnaces
Raw Material:
Corundum
Certificate:
ISO BV
Feature:
Thermal Shock Resistance
Cold Crushing Strength(MPa):
25-45 Mpa
Color:
Light Grey
Usage:
Refractoy
Al2O3:
40%-88%
Corundum Refractory Castables Good Thermal Shock Resistance
Product Description



Corundum refractory castable

The main component of corundum is aluminum oxide (Al2O3), which has a high content, generally above 90%. Since aluminum oxide itself has a very high melting point, corundum refractory castables have excellent high temperature resistance, with a refractoriness of up to 1770℃-2000℃. They can withstand various thermal stresses and chemical erosions in high temperature environments, and can be used in various high-temperature industrial kilns and other thermal equipment.

 Corundum Refractory Castables Good Thermal Shock Resistance 0

Features

Good workability, strong bonding force, long initial setting time and construction operation time, rapid strength growth, strong impermeability, no acid treatment, easy to ensure the compactness and fullness of the brickwork, and can significantly improve the chimney lining The air-tightness and integrity of the wall and the anti-corrosion ability of the lining. It is an ideal cementing material for the lining of high chimneys, high temperature flues and air ducts. It can also be used for acid-resistant pools and tanks in petroleum, chemical, non-ferrous metallurgy and other industries engineering.

Corundum Refractory Castables Good Thermal Shock Resistance 1



 The corundum crystal structure is stable and can maintain good crystal morphology and structural integrity at high temperatures, giving the castable a higher room temperature compressive strength and high temperature compressive strength. Generally speaking, the room temperature compressive strength of corundum refractory castables can reach 50MPa-100MPa or more, and the high temperature compressive strength can also be maintained at a high level, which can effectively resist the impact, wear and extrusion of the material and extend the service life.



Technical Data

 Refractory Castable,Refractory Casting Material,Refractory Mortar

Brand

LW-0.6

LW-0.8

LW-1.0

LW-1.1

LW-1.3

LW-1.5

LW-1.8

Max service Temp. °C

1000

1100

1150

1200

1250

1300

1350

Bulk density (g/cm3)

110°Cx24h

0.6-0.7

0.8-0.9

1.0-1.1

1.1-1.2

1.3-1.4

1.5-1.6

1.8-2.0

bending strength

110°Cx24h

≥0.5

≥1.0

≥1.5

≥2.0

≥2.5

≥4

≥4

1110°Cx3h

≥0.5

≥1.0

≥1.0

≥2.0

≥2.5

≥3

≥4

CCS

(Mpa)

110°Cx24h

≥2.0

≥2.5

≥5.0

≥6.5

≥7.5

≥18

≥15

1110°Cx3h

≥1.5

≥2.0

≥3.0

≥5.5

≥10

≥15

≥25

Linear change rate %

1110°Cx3h

≤-2.5

≤-1.0

≤-0.8

≤-0.5

≤-0.5

≤-0.5

≤-0.5

Thermal Conductivity

(W/(m.k))

≤0.2

≤0.25

≤0.28

≤0.38

≤0.4

≤0.43

≤0.6

Appliciation

Cement kiln insulation lining and various industrial kiln insulation lining

 Corundum Refractory Castables Good Thermal Shock Resistance 2
Packaging & Shipping



Corundum Refractory Castables Good Thermal Shock Resistance 3

 After production, High Alumina Refractory Castable is packed and shipped to customers. Most common packing are Big Bags of 1 metric ton, 1.2 or 1.3 metric tons. Or packed into 25kg woven plastic bags or 25kg paper bags, and 40 bags on a pallet.
Other Low Cement Insulation Castable grain sizes can be produced if required.

Packaging & Shipping
1. 1 ton bags in container, 25 MT/20'FCL.
2. 25kg bags in container, 25 MT/20'FCL
3. 25kg bags in ton bags, then in container, 25 MT/20'FCL
4. as the customer' request.

Corundum Refractory Castables Good Thermal Shock Resistance 4

Certifications

Refractory Castable,Refractory Casting Material,Refractory Mortar

 Corundum Refractory Castables Good Thermal Shock Resistance 5Corundum Refractory Castables Good Thermal Shock Resistance 6

FAQ

Refractory Castable,Refractory Casting Material,Refractory Mortar

1. How can you control your quality?

For each production processing, we have complete QC system for& nbsp;the chemical composition and Physi cal properties. After production, all&nbsp ;the goods will be tested, and&nbs p;the quality certificate will be ship ped along with goods.

2. What's your delivery time?

It usually needs about 15days- 30 days after receiving the deposit.

3.Do you have any experiences of export?

Yes,and Now we have gained a global sales network reaching Taiwan, Russia, South Korea, Vietnam, Pakistan, Bulgaria, French, India, Congo, Angola, South Africa, and so on.

4. Do you provide free samples?

Yes, we can provide a free sample for testing, If we ha ve sample in stock, The quantity based on the material type, The&n bsp;buyer should bear all the shipp ing costs.

5. Can we visit your Company?

Yes, certainly. You are very welcome to China and we will be honored to have a customer and friend.

Customers

Corundum Refractory Castables Good Thermal Shock Resistance 7

Hongtai Kiln Refractory has professional sales and after-sale service team who provide customers all-around service about product selection, transportation, installation and operation technology training etc. Now we have established cooperation relationship with many science and research units and our products have been sold to Vietnam, Thailand, Malaysia, South Korea, Pakistan, Kazakhstan, India, Japan, Indonesia, Germany, Italy, Mongolia, Argentina, colombia, Egypt, America, Mauritania and etc.
