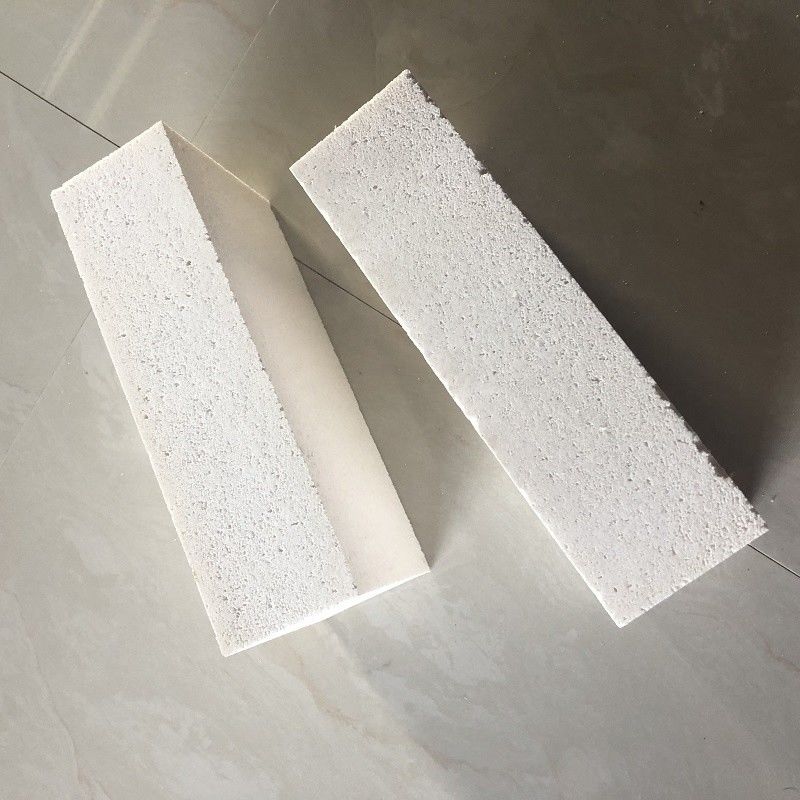

High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications

High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications

Product Details

Place of Origin: Henan, China

Brand Name: Hongtai

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: 1000 kilograms

Price: $1.20 - $2.00/kilograms

Get Best Price

Product Details

Product Description
Highlight:
Shape:
Brick
Material:
Alumina
SiO2 Content (%):
-
Al2O3 Content (%):
85-95
MgO Content (%):
-
CaO Content (%):
-
Refractoriness (Degree):
1770°< Refractoriness< 2000°
CrO Content (%):
-
SiC Content (%):
-
Product Name:
Bubble Alumina Insulation Brick Used In Metallurgical
Application:
Industrial Furnaces
Shape:
Brick
Material:
Alumina
SiO2 Content (%):
-
Al2O3 Content (%):
85-95
MgO Content (%):
-
CaO Content (%):
-
Refractoriness (Degree):
1770°< Refractoriness< 2000°
CrO Content (%):
-
SiC Content (%):
-
Product Name:
Bubble Alumina Insulation Brick Used In Metallurgical
Application:
Industrial Furnaces
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications
Product Description
High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical
High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical for insulation layer is a new type of high-temperature insulation material, which is made by melting and blowing industrial aluminum oxide in an electric furnace. With aluminum oxide hollow balls as the main body, various shaped products can be made. The product has a high operating temperature of 1800 ℃, high mechanical strength, several times that of ordinary lightweight products, and a volume density only half of that of corundum products. High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical are widely used in high-temperature and ultra-high temperature kilns such as gasification furnaces in the petrochemical industry, carbon black industrial reaction furnaces, and induction electric furnaces in the metallurgical industry, and have achieved very good energy-saving effects.
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 0
High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical
1. High usage temperature: It can reach above 1750 degrees and has good thermal stability. The rate of change of the re burned line is small, and it can be used for a longer time. 2. Optimize the structure and reduce the weight of the furnace body: Nowadays, high-temperature resistant materials are commonly used as heavy bricks with a volume density of 2.6-3.0g/cm, while alumina hollow ball bricks only have a volume of 1.1-1.5g/cm. With the same cubic meter volume, using alumina hollow ball bricks can reduce weight by 1.1-1.9 tons. 3. Material saving: To achieve the same operating temperature, the price of using heavy bricks is comparable to that of alumina hollow ball bricks, and a considerable amount of insulation layer refractory material is also required. If alumina hollow ball bricks are used, it can save 1.1-1.9 tons of heavy bricks per cubic meter, and also save 80% of refractory insulation materials. 4. Energy saving: Aluminum oxide hollow balls have obvious insulation properties and low thermal conductivity, which can achieve good insulation effect, reduce heat dissipation, improve thermal efficiency, and thus save energy. The energy-saving effect can reach over 30%.
Item
Alumina Bubble Brick
HT-85
HT-90
HT-95
HT-99
Al2O3 (%)
≥85
≥90
≥95
≥99
SiO2 (%)
≤15
≤8
Fe2O3 (%)
≤0.8
≤0.5
≤0.3
≤0.2
0.1 MPa Refractoriness Under Load (ºC)
≥1600
≥1650
≥1700
≥1700
The Highest Working Temperature (ºC)
1680
1700
1750
1800
Bulk Density (g/cm3)
1.4-1.7
1.4-1.7
1.4-1.7
1.4-1.7
Reheating Linear Change 1600ºC*3h (%)
±0.3



C.C.S (MPa)
≥6
≥8
≥15
≥18
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 1
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 2
Detailed Images
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 3
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 4
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 5
Manufacture Specification
High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical
High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical is a type of ultra-high temperature energy-saving and insulation material, which is mainly made of aluminum oxide hollow balls and aluminum oxide powder, combined with other binders, and fired at a high temperature of 1750 degrees. Aluminum oxide hollow ball brick is a new type of high-temperature insulation material, which is made by melting and blowing industrial aluminum oxide in an electric furnace. With aluminum oxide hollow balls as the main body, various shaped products can be made. The product has a high operating temperature of 1800 ℃, high mechanical strength, several times that of ordinary lightweight products, and a volume density only half of that of corundum products. Aluminum oxide hollow ball bricks are widely used in high-temperature and ultra-high temperature kilns such as gasification furnaces in the petrochemical industry, carbon black industrial reaction furnaces, and induction electric furnaces in the metallurgical industry, and have achieved very good energy-saving effects. Aluminum oxide hollow balls and their products are lightweight refractory materials with high temperature resistance and excellent energy conservation, which are very stable when used in various atmospheres. Especially suitable for application in high-temperature kilns at 1800 ℃. Hollow balls can be used as high-temperature and ultra-high temperature insulation fillers, lightweight aggregates for high-temperature refractory concrete, high-temperature pouring materials, etc. Hollow ball bricks can be used for high-temperature energy-saving (>30%) inverted flame kilns, shuttle kilns, molybdenum wire furnaces, tungsten rod furnaces, induction furnaces, nitriding furnaces, etc. Significant results will be achieved in reducing the weight of the furnace body, transforming the structure, saving materials, and energy. Aluminum oxide powder is produced using reliable industrial aluminum oxide as raw material, using a new high-temperature inverted flame kiln and scientific calcination process. It is manually selected, graded clearly, contains less impurities, has high conversion rate, stable shrinkage rate, and good consistency.
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 6
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 7
Company Introduction
High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical
Henan Hongtai Kiln Refractory Co., Ltd. is established in 2002, located in Xinmi City, 40kilometers southwest of Zhengzhou City in Henan Province, close to Jingguang, Longhai railway lines, with road transport facilities. Rich resources of Refractory materials,adequate and qualified fuel in this area, provide unique conditions for refractory production, shipping and refractory industry development. Main products include different kinds of refractory brick:Fire Clay Brick, High Alumina Brick, Light Weight Insulating Brick,Corundum Brick,Mullite Brick,AZS Bricks, Refractory Balls ,Refractory concrete,refractory castable,Acid resistant brick etc.They are widely used in Iron and steel, Nonferrous metals, Building materials(Cement,Glass,Ceramic),Petrochemical,Energy & Incineration etc industries. Our products have been exported to United States, Germany, Italy, Spain, Mexico, Brazil, South Korea,India,Turkey,Vietnam,Malaysia and Kazakhstan etc.“Science-Technology Innovation, Cooperation for Win-Win”
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 8

High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical

Our Services & Strength

1.Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractories production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3.Export experiences:
Now we have gained a global sales network reaching United States, Germany, Italy, Spain, Mexico, Brazil, South
Korea,India,Turkey,Vietnam,Malaysia and Kazakhstan etc, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester
High Mechanical Strength Bubble Alumina Insulation Brick for Temperature Applications 9
FAQ
High Mechanical Strength Bubble Alumina Insulation Brick Used in Metallurgical
Q1: Are you a manufacturer or trader ?
A1: Manufacturer, some time we help our clients to purchase relevant products as a trader.
Q2: What's the MOQ?
A2. No limitation.
Q3: Can we visit your factory?
A3: Of course ,welcome at any time,seeing is believing
Q4: What's your payment terms?
A4: Negotiation, Accoridng to your inquiry products quality and quantity .
Q5: Did your factory accept customization ?
A5: Professional technology teams and engineers all can satisfy you.
Q6: How do you guarantee quality?
A6: For every production processing,we have complete QC system for the chemical composition and Physical properties.After
production,all the goods will be tested ,and the quality certificate will be shipped along with goods. Accept SGS inspection or
any third party you as sign .
