Zirconia ZrO2 Nozzle for Steel Making Industry CaO Content % Sample Provided

Name: Zirconia ZrO2 Nozzle for Steel Making Industry CaO Content % Sample Provided
Brand: Hongtai
SKU: Customization
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (166 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: Hongtai

Model Number: Customization

Payment & Shipping Terms

Minimum Order Quantity: 1000 pieces

Price: $1.00 - $5.00/pieces

Packaging Details: 1.International standard seaworthy exportable packing.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.

Supply Ability: 10000 Piece/Pieces per Week

Get Best Price

Product Details

Product Description

Highlight:

Shape:	Brick	Material:	Zirconia
SiO2 Content (%):	0.4	Al2O3 Content (%):	0.2
MgO Content (%):	2.9	CaO Content (%):	~
Refractoriness (Degree):	1770°< Refractoriness< 2000°	CrO Content (%):	~
SiC Content (%):	~	Product Name:	Zirconia ZrO2 Nozzle
Application:	Metallurgy	Color:	Light Yellow
Size:	Drawing	Bulk Density(g/cm3):	5.25
Apparent Porosity/%:	7-8	Package:	Wooden Pallet
Working Temperature:	1300-1600C	Sample:	Freely Provided
Refractories C:	1690~1710

Shape:	Brick
Material:	Zirconia
SiO2 Content (%):	0.4
Al2O3 Content (%):	0.2
MgO Content (%):	2.9
CaO Content (%):	~
Refractoriness (Degree):	1770°< Refractoriness< 2000°
CrO Content (%):	~
SiC Content (%):	~
Product Name:	Zirconia ZrO2 Nozzle
Application:	Metallurgy
Color:	Light Yellow
Size:	Drawing
Bulk Density(g/cm3):	5.25
Apparent Porosity/%:	7-8
Package:	Wooden Pallet
Working Temperature:	1300-1600C
Sample:	Freely Provided
Refractories C:	1690~1710

Zirconia ZrO2 Nozzle for Steel Making Industry CaO Content % Sample Provided

Product Description

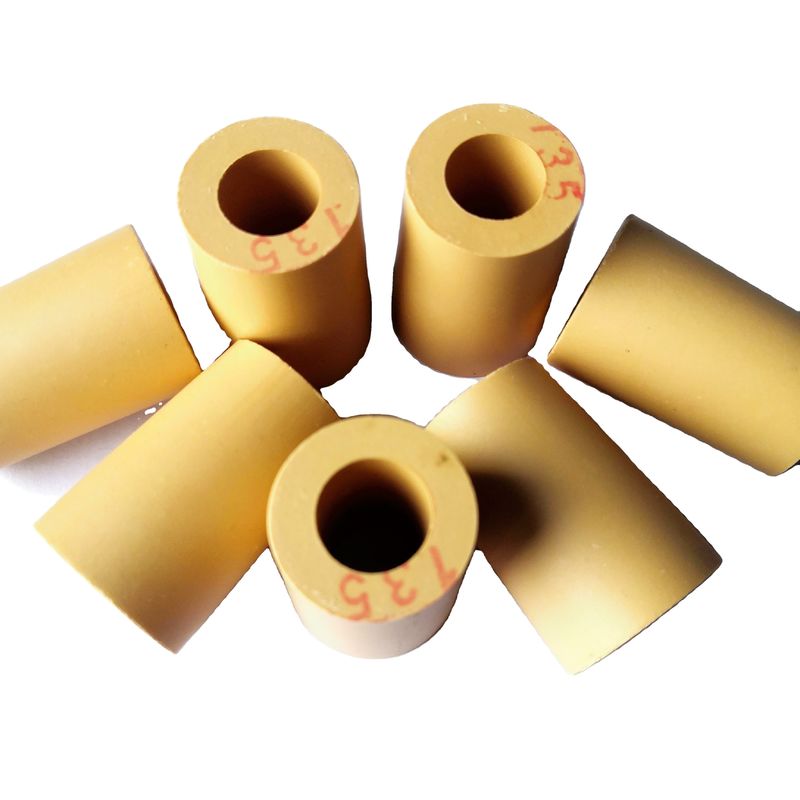

Zirconia ZrO2 Nozzle in steel factory are made of zirconia and baddeleyite, formed by high tension and baked in high temperature when stablized by special technology. Different sizes and types of zirconia metering nozzles are designed and made according to users' different steel-making conditions and requirements.

Product Name	Zirconia Insert
Brand	Hongtai
Color	Light Yellow
Material	Zirconia
Size	Customization

Brand			HT-1	HT-2	HT-3	HT-4	HT-5	HT-6	HT-7	HT-8
Chemical Composition(%)≥	ZrO2+HfO2	70	75	80	85	90	93	93	95
Bulk Density(g/cm3)≥			3.8	4	4.2	4.4	4.6	4.9	5.1	5.3
Apparent porosity(%)≤			22	22	20	20	20	15	13	10
Cold Crushing Strength(Mpa)≥			80	80	80	80	80	80	90	100
Refractoriness(℃）≥			1790	1790	1790	1790	1790	1790	1790	1790
Thermal shock resistance(times)（1100℃ )			5	5	5	5	5	5	5	5

Detailed Images

High Purity & Strong Density

Good Thermal Shock Stability

Abrasion & Erosion Resistance

Application

Application of Zirconia Insert

Zirconia Insert almostly used in the converter, ladle, tundish with continuous casting technology and Medium Frequency Furnace Electromagnetic induction
heating smelting process, the properties of full ZrO2 material ring, slide gate plate, nozzle etc. high purity ZrO2 inserts
products have reached the leading level in the domestic same industry quality. The quality and technology of the products we are
manufacturing now have been in the lead of relative industry domestically, it have successfully instead of Germany, UK, etc Europe.Origin products in India, Russia etc. Market.

Certificate

Packing&Shipping

Packaging:
1.International standard seaworthy exportable packing.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.

Shipping :

1.The sample willl be send by International expresses FEDEX/DHL/UPS/TNT.
2.The goods are transport by shipping.

Company Introduction

Henan Hongtai Kiln Refractory Co., Ltd. is established in 2002, located in Xinmi City, 40kilometers southwest of Zhengzhou City in Henan Province, close to Jingguang, Longhai railway lines, with road transport facilities. Rich resources of Refractory materials,adequate and qualified fuel in this area, provide unique conditions for refractory production, shipping and refractory industry development.
Main products include different kinds of refractory brick:Fire Clay Brick, High Alumina Brick, Light Weight Insulating Brick,Corundum Brick,Mullite Brick,AZS Bricks, Refractory Balls ,Refractory concrete,refractory castable,Acid resistant brick etc.They are widely used in Iron and steel, Nonferrous metals, Building materials(Cement,Glass,Ceramic), Petrochemical, Energy & Incineration etc industries. Our products have been exported to India,Turkey,Vietnam,Malaysia and Kazakhstan etc.“Science-Technology Innovation, Cooperation for Win-Win”

Our Services & Strength

1. ISO 9001 certified Chinese supplier
2. Provide product search, offer, quality control, warehousing, international logistics, etc one-stop service
3. Offer customization product and all-around product application programs according to customers' requirement
4. Supply FREE sample and accept small orders
5. Alternative Packages
6. Operated by in professional teams, offer quality after-sales service and technical support.

FAQ

1.What's your payment terms?
Various payment will be supported
2.What's your delivery time?
Usually within 15-30 days after receive the deposit.
3.How about the packing?
25 kg/bag,outer woven bags with inner plastic lining.
4.What documents you provide?
Usually, we provide Commercial Invoice, Packing List, Bill of lading, COA , TDS. etc.If your markets have any special
requirements, let us know.
5.How about the validity of the products?
According to the products you ordered.
6.What is loading port?
Usually isTianjin, Shanghai or Qingdao.
