$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory$

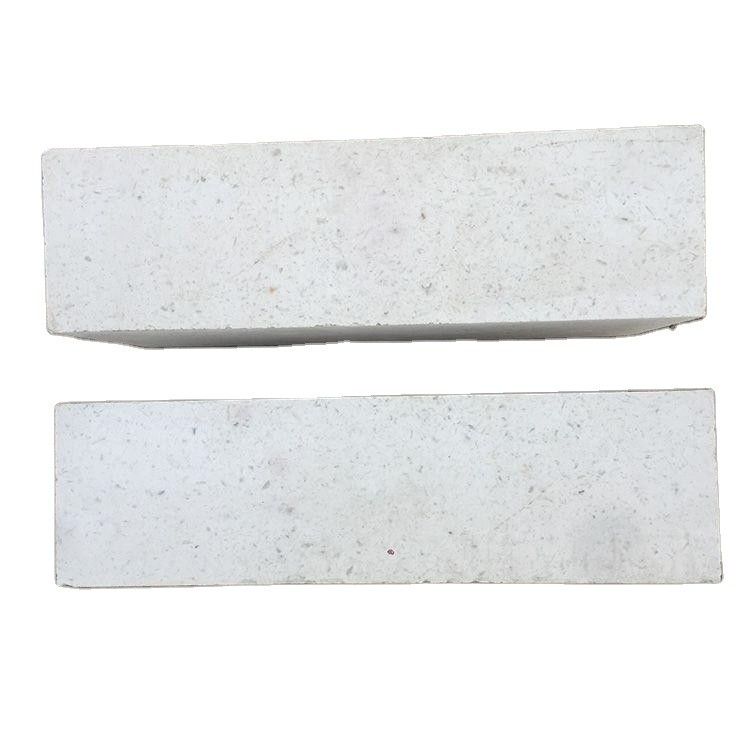

ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory

Name: ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory
Brand: Henan Hongtai Kiln Refractory Co.,Ltd.
SKU: MS60,MS65,MS70,MS75,MS80
Price: 100.00 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: Hongtai

Model Number: MS60,MS65,MS70,MS75,MS80

Payment & Shipping Terms

Minimum Order Quantity: 448 tons

Price: $800.00 - $1,200.00/tons

Get Best Price

Product Details

Product Description

Highlight:

Shape:	Brick	Material:	Mullite
SiO2 Content (%):	18-35	Al2O3 Content (%):	60-80
MgO Content (%):	0.03max	CaO Content (%):	0.03max
Refractoriness (Degree):	Common (1580°< Refractoriness< 1770°)	CrO Content (%):	0.01max
SiC Content (%):	0.03max	Processing Service:	Punching, Cutting, Moulding
Fe2O3:	0.4-1.2	Product Name:	Mullite Brick
Application:	Industrial Furnaces,glass Kiln,Hot Blast Furnace	Color:	Light Yellow
Cold Crush Strength:	45-80	Bulk Density(g/cm3):	2.45-2.65
Certificate:	ISO9001	Size:	Customized Size
Raw Material:	High Alumina Bauxite	Usage:	Industrial Furnaces,glass Kiln,Hot Blast Furnace

Shape:	Brick
Material:	Mullite
SiO2 Content (%):	18-35
Al2O3 Content (%):	60-80
MgO Content (%):	0.03max
CaO Content (%):	0.03max
Refractoriness (Degree):	Common (1580°< Refractoriness< 1770°)
CrO Content (%):	0.01max
SiC Content (%):	0.03max
Processing Service:	Punching, Cutting, Moulding
Fe2O3:	0.4-1.2
Product Name:	Mullite Brick
Application:	Industrial Furnaces,glass Kiln,Hot Blast Furnace
Color:	Light Yellow
Cold Crush Strength:	45-80
Bulk Density(g/cm3):	2.45-2.65
Certificate:	ISO9001
Size:	Customized Size
Raw Material:	High Alumina Bauxite
Usage:	Industrial Furnaces,glass Kiln,Hot Blast Furnace

ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory

Product Description

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 0$

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 1$

Henan refractory manufacturer electrocast fuse cast mullite brick for glass furnace

Mullite is a mineral formed by aluminosilicate at high temperature. Mullite is formed when aluminosilicate is artificially heated. Natural mullite crystals are elongated needle-shaped and radial clusters. Since there is very little natural Moraite, it is usually synthesized by sintering method or capacitor method. Mullite mine is used to produce high-temperature refractory materials.

Since mullite Al2O3•SiO2 is the main crystal phase of mullite bricks, the properties of the products are mainly determined by mullite. Mullite is the only stable compound in Al2O3-SiO2 system under normal pressure and oxidizing atmosphere. Generally, the alumina content is between 65% and 75%. In addition to mullite, the mineral composition with lower alumina also contains a small amount of glass phase and cristobalite; the higher alumina content also contains a small amount of corundum. The refractoriness is high, which can reach above 1790℃. The starting temperature of load softening is 1600～1700℃. Compressive strength at room temperature is 70～260MPa. Good thermal shock resistance.

1. Alumina content is between 60% to 80%.
2. Refractoriness 1790 degree Celsius.
3. Load softening is 1600～1700℃.

4. Compressive strength at room temperature is 70～260MPa
5. Working temperature:1500°C -1700°C.

Specification

Sintered Mullite brick

There are two types of mullite bricks: sintered mullite bricks and fused mullite bricks. 1. Sintered mullite bricks are made of high-alumina bauxite clinker as the main raw material, adding a small amount of clay or raw bauxite as a binding agent, and forming and firing.

Sintered mullite brick	Grade
Item	MS-60	MS65	MS-70	MS-75	MS-80
AL2O3 %min	60	65	70	75	80
Fe2O3 %max	1.2	1	0.8	0.6	0.4
Apparent porosity % max	16	16	16	16	16
Bulk Density, g/cm3 min	2.45	2.5	2.55	2.60	2.65
Cold crushing strength Mpa min	60	60	60	70	70
Refractoriness under load (0.2MPa) °C, min	1600	1650	1700	1700	1700
Linear change on reheating (1500°C, 3h)%	±0.1	±0.1	±0.1	±0.1	±0.2

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 2$

Fused mullite brick

2. Fused mullite bricks are made of high bauxite, industrial alumina and refractory clay as raw materials, and charcoal or coke fine particles are added as reducing agents. After molding, they are manufactured by reduction fusion method. The crystallization of fused mullite is better than that of sintered mullite bricks, and the thermal shock resistance is better than that of sintered products. Their high temperature performance mainly depends on the content of alumina and the uniformity of mullite phase and glass distribution.

Item			MU 60	MU 65	MU 70	MU 75
Chemical composition	Al2O3	≥60	≥65	≥70	≥75
		SiO2	≤35	≤33	≤26	≤24
		Fe2O3	≤1.0	≤1.0	≤0.6	≤0.4
Apparent Porosity％			≤17	≤17	≤17	≤18
Bulk Density g/cm3			≥2.55	≥2.55	≥2.55	≥2.55
Cold Crushing Strength Mpa			≥60	≥60	≥80	≥80
0.2Mpa Refractoriness Under Load T0.6 ℃			≥1580	≥1600	≥1600	≥1650
Permanent Linear Change On Reheating % 1500℃X2h			0～+0.4	0～+0.4	0～+0.4	0～+0.4
Thermal Shock Resistances 100℃ water cycles			≥18	≥18	≥18	≥18
Thermal Expansich10-6/℃ 20－1000℃			0.6	0.6	0.6	0.55
Thermal Conductivity (W/MK) 1000℃			1.74	1.84	1.95	1.95

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 3$

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 4$

Henan refractory manufacturer electrocast fuse cast mullite brick for glass furnace

HongTai Refractory is committed to high quality standards for all its products and services. With its thirst on State of the art technology at every level and a wide range of products, HongTai Refractory can provide ideal solutions for the stringent requirement of the customer. Backed by decade of experience in different industries, and close association with customers,HongTai Refractory will always bring new products which will give better life and value to the user.

The quality assurance system consists of the following steps:
1. Inspection and Control of incoming raw materials:According to the chemical content,raw materials are classified into different levels to ensure quality of brick first.
2. Inspection and process control:During the production, each brick weight twice to reduce weight error.
3. Inspection of product Standardization of quality of each product by process control and experimentation.
4. Taking corrective measures whenever deviations are noted.

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 5$

Henan refractory manufacturer electrocast fuse cast mullite brick for glass furnace

The high temperature creep properties of mullite products are better than those of high alumina bricks produced from natural bauxite materials. The high temperature performance can be comparable to siliceous and magnesia products, and the corrosion resistance to acidic and low alkaline slag is better than that of magnesium Products. There are two main types of mullite products: sintered mullite products and cast mullite products. Mullite products are mainly used for lining various parts of thermal kilns in industrial sectors such as steel, chemical industry, glass and ceramics.

Mainly used for

1. hot blast stove top, blast furnace body and bottom;

2. regenerator of glass melting furnace;

3. ceramic sintering kiln,

4. dead corner lining of petroleum cracking system, etc.

Packing & Delivery

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 6$

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 7$

Packaging
1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 1.5-1.7Tons, max 2.0 Tons.
(3)20 Foot Container can be loaded max 25-26Tons, about 13-16Pallets.
2.Can make the package according to customer's requirements.

Shipping
1.FEDEX/DHL/UPS/TNT for samples.
2.By Sea for batch goods.
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time:
(1)Samples:3 days for common shape samples;15 days for special shape samples.
(2)Batch goods:Within 7-10days for in stock bricks from ordering shipping space to deliver goods and within20-30 days for NO in stock bricks.
Payment Terms
(1)T/T, Western Union,LC;
(2)Usually 30% deposits,70% balance to be paid before delivery or against copy of BL or negotiations
Others
1. MOQ: Usually 1 container, MOQ 1Tons, Customers can order certain PCS for special brick.
2. Quality Warranty: 1 years

Company Profile

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 8$

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 9$

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 10$

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 11$

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 12$

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 13$

Henan hongtai kiln refractory co., LTD. Is well aware that there are thousands of demands from customers, which can be summarized in four aspects: reliable quality, timely delivery, reasonable price and considerate service.The company will continue to adhere to the corporate spirit of "contributing to society and serving customers" and the business philosophy of "mutual benefit, win-win, integrity, efficiency, preciseness and responsibility".Our company is willing to develop a wide range of technical exchanges with colleges and universities and colleagues from all walks of life at home and abroad in a flexible and diversified way.

Henan hongtai kiln refractory co., LTD. Main products are high alumina brick, clay brick, mullite brick, fused zirconium corundum brick, fireproof ball lightweight insulation brick, wear-resistant pouring material, corundum pouring material, low cement high strength pouring material, impermeable material, self-flowing material, plastic material, and various types of refractory materials.For different industries, the cement industry with anti-flaking high-alumina bricks, alkali resistant bricks, phosphate bricks;Boiler industry USES all kinds of brand wear-resisting brick, corundum brick, mullite brick and other finalizing materials.The company insists on "product quality is the life, enterprise integrity is the foundation", in the fierce market competition, won many users' trust and praise.The products are sold all over the country, as far as Vietnam, India, South Korea, Pakistan, Kazakhstan, Malaysia and other southeast Asian countries and regions.

Henan hongtai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management,
strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service.Henan hongtai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.

Why Choose Us

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 14$

Henan refractory manufacturer electrocast fuse cast mullite brick for glass furnace

1. Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractory production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3. Export experiences:
Now we have gained a global sales network reaching Taiwan, Russia, South Korea, Vietnam, Pakistan, Bulgaria, French, India, Congo, Angola, South Africa, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester Bulk Density Tester The Pressure Tester Refractoriness Tester

Customer Photos

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 15$

Hongtai Kiln Refractory has professional sales and after-sale service team who provide customers all-around service about product selection, transportation, installation and operation technology training etc. Now we have established cooperation relationship with many science and research units and our products have been sold to Vietnam, Thailand, Malaysia, South Korea, Pakistan, Kazakhstan, India, Japan, Indonesia, Malaysia, Germany, Italy, Mongolia, Russia, Argentina, Colombia, Eygpt, South Africa and etc.
We has 20 years experience on producing the mullite brick.
Payment Guarantee: If couldn't trust us at first order, could use trade Assurance.

$ISO9001 Accredited Mullite Brick for Glass Furnace Manufactured by Henan Refractory 16$

Jerry Li

Cell&WhatsApp: 0086-13373957739
Email: jerry(at)firebricks-supplies.com
