Product Details
Place of Origin: Henan, China
Brand Name: Hongtai
Model Number: oem
Payment & Shipping Terms
Price: $5,500.00/tons 1-24 tons
Packaging Details: Packing Details : Export packaging standards
Supply Ability: 1000 Ton/Tons per Month
Type: |
Electrode Powder |
Application: |
Electric Arc Furnaces, Ore-heating Furnace, Electric Are Furnace |
Length: |
OEM |
Grade: |
UHP (Ultra High Power) |
Resistance (μΩ.m): |
5.5-7 |
Apparent Density (g/cm³ ): |
1.6-1.72 |
Thermal Expansion: |
1.4-2.4 |
Flexural Strength (N/㎡): |
10-16 |
Color: |
Black |
ASH: |
0.3% Max |
Product Name: |
Graphite Electrode |
Raw Material: |
Petroleum Coke |
Name: |
RP RPI HP SHP UHP Graphite Electrode |
Packing: |
Wooden Pallet |
SIZE: |
Costomer's Request |
Certificate: |
ISO9001:2008 |
Ash Content: |
0.3 %Max |
Type: |
Electrode Powder |
Application: |
Electric Arc Furnaces, Ore-heating Furnace, Electric Are Furnace |
Length: |
OEM |
Grade: |
UHP (Ultra High Power) |
Resistance (μΩ.m): |
5.5-7 |
Apparent Density (g/cm³ ): |
1.6-1.72 |
Thermal Expansion: |
1.4-2.4 |
Flexural Strength (N/㎡): |
10-16 |
Color: |
Black |
ASH: |
0.3% Max |
Product Name: |
Graphite Electrode |
Raw Material: |
Petroleum Coke |
Name: |
RP RPI HP SHP UHP Graphite Electrode |
Packing: |
Wooden Pallet |
SIZE: |
Costomer's Request |
Certificate: |
ISO9001:2008 |
Ash Content: |
0.3 %Max |

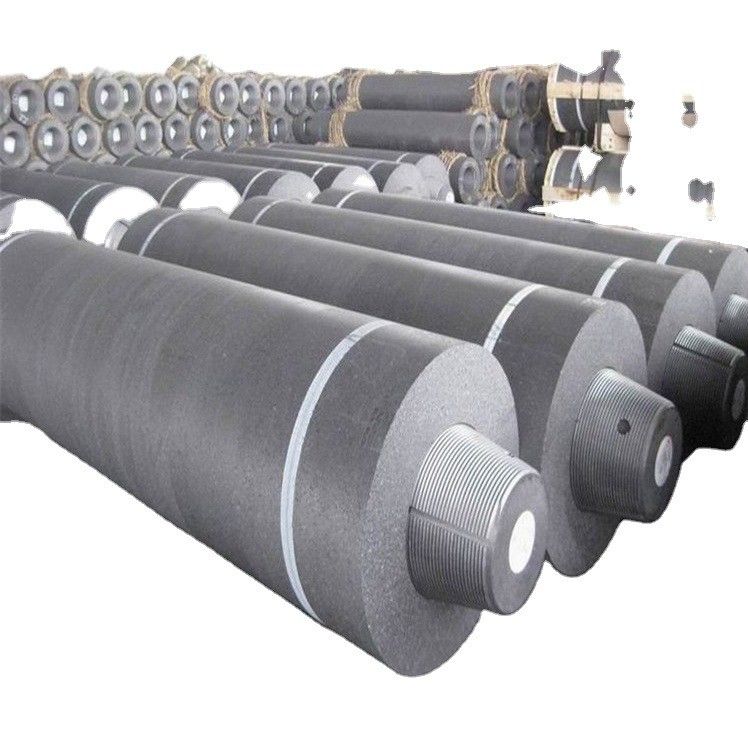

Introduction of China manufacture graphite bar/graphite rod electrode/Graphite electrode products
China manufacture graphite bar/graphite rod electrode/Graphite electrode products, mainly made of petroleum coke and needle coke, coal tar pitch as binder, calcined, compounded, kneaded, pressed, calcined, graphitized, machined, is released in the form of electric arc in electric arc furnace The conductor that heats and melts the charge of the electric charge can be divided into ordinary power, high power and ultra high power according to its quality index.
Size and Shapes:
Customize according to customers provided drawings. Drawings deisgn is available.
a. Non-ferrous metal, precious metal and rare metal casting.
b. Sintering furnaces in powder metallurgy process and super hard materials production.
c. High purity, without contamination to treated substances.
d. Dense material with low porosity, ensuring long service life.
e. Polished mirror surface reduces graphite consumption speed
China manufacture graphite bar/graphite rod electrode/Graphite electrode products
| Properties | Unit | UHP | HP | RP | ||
| 300-600mm | 650-800mm | 300-800mm | 300-800mm | |||
| Electric resistivity | Electrode | μΩm | 4.8-5.8 | 4.6-5.8 | 5.8-6.6 | 7.8-8.8 |
| Nipple | 3.8-4.5 | 3.8-4.5 | 4.2-5.0 | 5.0-6.5 | ||
| Flexural strength | Electrode | Mpa | 10.0-14.0 | 10.0-14.0 | 10.0-13.0 | 7.0-12.0 |
| Nipple | 20.0-26.0 | 22.0-26.0 | 18.0-22.0 | 15.0-20.0 | ||
| Young's modulus | Electrode | Gpa | 9.0-13.0 | 10.0-14.0 | 8.0-12.0 | 7.0-9.3 |
| Nipple | 15.0-18.0 | 15.0-18.0 | 14.0-16.0 | 12.0-14.0 | ||
| Bulk density | Electrode | ≥g/cm3 | 1.68-1.74 | 1.70-1.74 | 1.62-1.66 | 1.53-1.56 |
| Nipple | 1.77-1.82 | 1.78-1.84 | 1.74-1.80 | 1.70-1.74 | ||
| CTE(100-600℃) | Electrode | x10-6/℃ | 1.1-1.4 | 1.1-1.4 | 1.6-1.9 | 2.2-2.6 |
| Nipple | 0.9-1.2 | 0.9-1.2 | 1.1-1.4 | 2.0-2.5 | ||
| Ash | 0.3 | 0.3 | 0.3 | 0.5 | ||
China manufacture graphite bar/graphite rod electrode/Graphite electrode products
Packing Details : Export packaging standards
Delivery Details : 3-30 days after order confirmed
