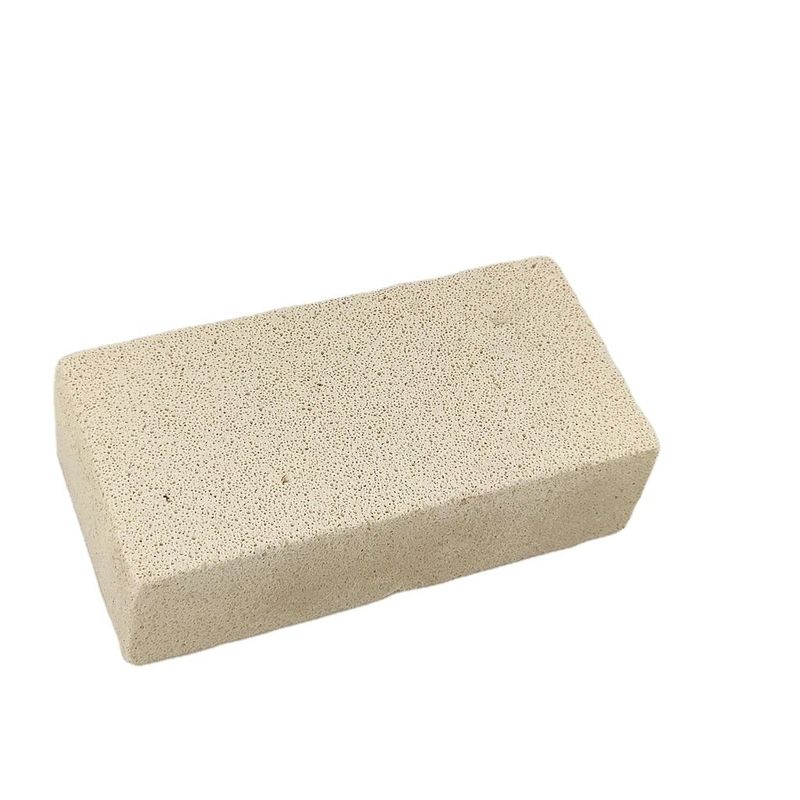

Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks

Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks

Product Details

Place of Origin: Henan, China

Brand Name: Hongtai

Model Number: JM23, JM26, JM28, JM30

Payment & Shipping Terms

Minimum Order Quantity: 2 tons

Price: $600.00 - $1,200.00/tons

Packaging Details: Standard export wooden pallet with cardboard and PET strap, 10 bricks for 1 carton, 48 cartons for 1 pallet.

Supply Ability: 3000 Ton/Tons per Month high alumina refractory brick

Get Best Price

Product Details

Product Description
Highlight:
Shape:
Brick
Material:
Mullite
SiO2 Content (%):
15-45%
Al2O3 Content (%):
38-75%
MgO Content (%):
0.05%Max
CaO Content (%):
0.34%
Refractoriness (Degree):
Common (1580°< Refractoriness< 1770°)
CrO Content (%):
0.1-0.3%Max
SiC Content (%):
0.1-1.4
Processing Service:
Welding, Moulding
Product Name:
Mullite Insulation Brick
Application:
Industrial Furnaces Lining Insulation
Color:
White
BULK DENSITY:
0.6-1.0g/cm3
Size:
230x114x65mm, 230*114*75mm
Usage:
Furnace Liner
Certificate:
ISO9001:2008
Sample:
Sample Provided Freely
Type:
Factory
Brand:
HongTai
Shape:
Brick
Material:
Mullite
SiO2 Content (%):
15-45%
Al2O3 Content (%):
38-75%
MgO Content (%):
0.05%Max
CaO Content (%):
0.34%
Refractoriness (Degree):
Common (1580°< Refractoriness< 1770°)
CrO Content (%):
0.1-0.3%Max
SiC Content (%):
0.1-1.4
Processing Service:
Welding, Moulding
Product Name:
Mullite Insulation Brick
Application:
Industrial Furnaces Lining Insulation
Color:
White
BULK DENSITY:
0.6-1.0g/cm3
Size:
230x114x65mm, 230*114*75mm
Usage:
Furnace Liner
Certificate:
ISO9001:2008
Sample:
Sample Provided Freely
Type:
Factory
Brand:
HongTai
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks
Product Description
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 0
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 1
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 2
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 3
Light weight Mullite insulation brick is a kind of quality refractory insulation materials for resisting high temperature with features of light weight, low thermal conductivity, thermal insulation and high compression strength in the high temperature furnaces or kilns. lightweight bricks are mainly used for the top of hot blast stove, stack and bottom of blast furnace, regenerative chamber of glass melting furnace, lining of ceramic high temperature furnace and so on.

Light weight Mullite insulation brick is manufactured with mullite as the main crystal phase and contains about 65~75% alumina content. Mullite Insulation Brick has high refractoriness that reaches up to 1790 ℃. Its apparent initial softening temperature is about 1600~1700℃. Its cold crushing strength is about 70~260MPa. Mullite Insulation Brick can be classified into different types of 1350 lightweight brick, 1450 lightweight brick and 1550 lightweight brick according to different service temperature and into Lightweight Mullite Brick and Heavy Mullite Brick according to different bulk density.
Specification
Lightweight Mullite Insulation Bricks Features:

1. Low thermal conductivity, with good thermal insulation effect;
2. Low thermal melting, due to low thermal conductivity, the mullite series of lightweight insulation bricks accumulate little heat energy, and the energy saving effect is obvious in intermittent operation;
3. Low impurity content has very low iron box alkali metal and other oxide content, therefore, high refractoriness; high aluminum content makes it maintain good performance in a reducing atmosphere;
4. High compressive strength in hot state;
5. Accurate appearance and size, speed up the masonry, reduce the amount of refractory mud, ensure the strength and
stability of the masonry, thereby extending the life of the lining;
6. It can be processed into special shapes to reduce the number of bricks and joints. It can be directly used for the lining of high-temperature kilns, and has been widely used in shuttle kilns, roller kilns, glass and petrochemical kilns.
Main properties

JM20
JM23
JM25
JM26
JM28
JM29
JM30
Classification temperature
°C
1100
1260
1350
1430
1540
1580
1600
Density
Kg/m3
500
500
800
800
900
1100
1100
Modulus of rupture
Mpa
0.7
0.7
1.2
1.8
1.8
2
2
Cold crushing strength
Mpa
0.8
1
1.8
2
2.5
3
3
AL2O3
%
45
45
45
55
64
70
73
SIO2
%
50
48
45
41
32
28
25
FE2O3
%
1
1
0.9
0.9
0.7
0.7
0.6
K2O+Na2O
%
1
1.2
1
0.9
0.8
0.7
0.7
There are many kinds of products standard in different countries, regulars are Chinese standard MG23 (1230°C), MG25(1350°C), MG26(1400°C), MG27(1450°C), MG28(1510°C), MG30(1620°C), MG32 (1730°C); and similar JM23, JM25, JM26, JM27, JM28, JM30, JM32; and K23, K25, K26, K27, K28, K30, K32 and others likes A series, A1, A2, A3, A4, A5, A6, A7; B series, B1, B2, B3, B4, B5, B6, B7; C series, C1, C2, C3 and some refractories have their own name, like MD, HT and so on.

If you don't have detailed information, Just tell us which type of furnace, using temperature and size, we could choose properrefractory products for you. If you could supply more details, like sintered products, whether have atmosphere and what,refractory brick drawings and data sheet, we'll be very appreciated.
Packing & Delivery
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 4
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 5
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 6
Packing for mullite insulation brick

1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film or carton boxes+pallet
(1)Wooden pallet size: Usually 0.92*0.92m(standard brick),but 1*1m (special shape brick) at most,
(2)Load weight of each pallet:Usually 0.3-1.2 Tons according different density, max 1.5 Tons.
(3)20 Foot Container can be loaded max 21 Tons, about 20-24 Pallets.
2.Can make the package according to customer's requirements.

Shipping for mullite insulation brick

1.FEDEX/DHL/UPS/TNT for samples.
2.By Sea for batch goods.
3.Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time:
(1)Samples:3 days for common shape samples;15 days for special shape samples.
(2)Batch goods:Within 7-10 days for in stock bricks from ordering shipping space to deliver goods and within 20-30 days for
special shape bricks.
Payment Terms
(1)T/T, Western Union,LC;
(2)Usually 30% deposits,70% balance to be paid before delivery or against copy of BL or negotiations
Others
1. MOQ: Usually 1 container, MOQ 1Tons, Customers can order certain PCS for special brick.
Why Choose Us
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 7
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 8
Hongtai Kiln Refractory has professional sales and after-sale service team who provide customers all-around service about product selection, transportation, installation and operation technology training etc. Now we have established cooperation relationship with many science and research units and our products have been sold to Vietnam, Thailand, Malaysia, South Korea, Pakistan, Kazakhstan, India, Japan, Indonesia, Germany, Italy, Mongolia, Russia, Argentina, colombia, Eygpt, South Africa and etc.

We has over 20 years experience on producting the JM23 JM26 JM28 Light Weight mullite Insulation brick for Furnace Insulation.

Payment Guarantee: If couldn't trust us at first order, could use trade Assurance.
Contact Us
Industrial Furnaces Lining Insulation with JM 26 Insulating Mullite Refractory Bricks 9
