Product Details
Place of Origin: Henan, China
Brand Name: hongtai
Model Number: CUSTOMIZED
Payment & Shipping Terms
Minimum Order Quantity: 10 pieces
Price: $10.00 - $30.00/pieces
Packaging Details: Packing details:

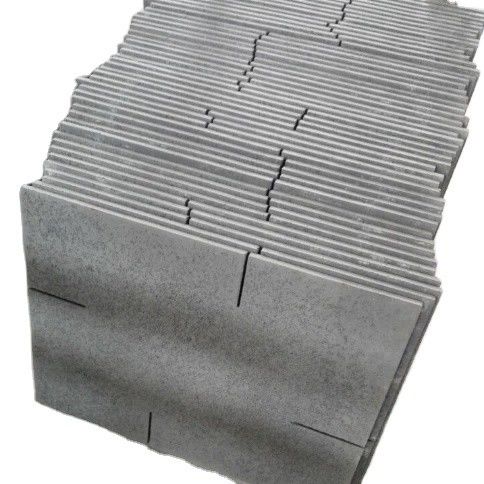

silicon carbide heating plate is packaged with fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finally using straps. Or as your requirements.
Shipping:
By
Supply Ability: 1000 Tonne/Tonnes per Month silicon carbide heating plate
Shape: |
Plate |
Material: |
Silicon Carbide Heating Plates |
SiO2 Content (%): |
0.3-15 |
Al2O3 Content (%): |
<12% |
MgO Content (%): |
0.8-1.2% |
CaO Content (%): |
0.34% |
Refractoriness (Degree): |
Common (1580°< Refractoriness< 1770°), 1580-1770 |
CrO Content (%): |
0.002% |
SiC Content (%): |
>=85% |
Product Name: |
Customized Silicon Carbide Heating Plates |
Application: |
Industrial Furnace |
Color: |
Black |
Size: |
Customizable |
Bulk Density(g/cm3): |
>2.65 |
Type: |
Manufacture |
Shape: |
Plate |
Material: |
Silicon Carbide Heating Plates |
SiO2 Content (%): |
0.3-15 |
Al2O3 Content (%): |
<12% |
MgO Content (%): |
0.8-1.2% |
CaO Content (%): |
0.34% |
Refractoriness (Degree): |
Common (1580°< Refractoriness< 1770°), 1580-1770 |
CrO Content (%): |
0.002% |
SiC Content (%): |
>=85% |
Product Name: |
Customized Silicon Carbide Heating Plates |
Application: |
Industrial Furnace |
Color: |
Black |
Size: |
Customizable |
Bulk Density(g/cm3): |
>2.65 |
Type: |
Manufacture |
Silicon Carbide Ceramic behaves almost like a diamand.It is not only the lightest, but also the hardest ceramic material and has excellent thermal conductivity, low thermal expansion, high resianstance to acids and lyesand it's not crack easily in the enviroment of sudden cold or hot.
Chemical and Physical index of silicon carbide heating plate:
| Main Performance Index of Silicon Carbide(SiC) heating plate: | |||
| Item | Unit | SiC | SSiC |
| Purity | % | ≥90 | ≥98 |
| Density | g/cm3 | 3.05 | 3.1 |
| Shore Hardness | HS | 110-125 | 120-130 |
| Elastic Modulus | Mpa | 4.12x105 | 4.10 x 10s |
| Poisson Ratio |
| 0.15 | 0.16 |
| Tensile Strength | Mpa | 2.75 x102 | 2.8 x 102 |
| Bending Strength | Mpa | 4.41 x102 | 4.9 x 102 |
| Compression Strength | Mpa | 2.94 x103 | 3.0 x 103 |
| Thermal Conductivity | W/m.k | 141 (W/m.k) | 147(W/m.k) |
| Coefficient ofThermal Expansion | l/ºC | 4.3x10-6 | 4.0 x 10-6 |
| Heat Resistance |
| 1600C | 165CTC |
| Thermal Impact Coefficient | cal/cm.sec | 46.5 | 200 |
| Acid Resistance |
| 5 times higher than the usual TC | Resist al chemical media |
Packing details:
silicon carbide plate is packaged with fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finally using straps. Or as your requirements.
Shipping:
By vessel or train from Chinese ports.
1. Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractorys production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3.Export experiences:
Now we have gained a global sales network reaching Taiwan, Russia, Korea, Vietnam, Pakistan, Bulgaria, French, India, Egypt,Congo, Angola, South Africa, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester
1. How you can control your quality?
For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
2. What's your delivery time?
It usually needs about 15days- 30 days after receiving the deposit.
3.Do you have any experiences of export?
Yes,and Now we have gained a global sales network reaching Taiwan, Russia, Korea, Vietnam, Pakistan, Bulgaria, French, India, Congo, Angola, South Africa, and so on.
4. Do you provide free samples?
Yes, we can provide a free sample for testing, If we have sample in stock, The quantity based on the material type, The buyer should bear all the shipping costs.
5. Can we visit your Company?
Yes, certainly. You are very welcome to China and we will be honored to have a customer and friend.
