Product Details
Place of Origin: Henan, China
Brand Name: HT
Model Number: Hongtai
Payment & Shipping Terms
Price: $1,500.00 - $2,000.00/tons
Packaging Details: plywood cases for export, or other packages required by customer.
Supply Ability: 3000 Ton/Tons per Month AZS--33/36/41 Fused cast zirconia-corundum refractory bricks
Shape: |
Brick |
Material: |
Zirconium |
SiO2 Content (%): |
13%-16% |
Al2O3 Content (%): |
Leavings |
MgO Content (%): |
International Standard |
CaO Content (%): |
International Standard |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
0 |
SiC Content (%): |
0 |
Product Name: |
Fused Cast High Zirconia Brick |
Application: |
Glass Industry Furnace |
Raw Material: |
Alumina,zircon, |
Color: |
White |
BULK DENSITY: |
5.1-5.3 |
Certificate: |
ISO9001 |
Type: |
Manufacture |
Size: |
Customers' Requirement |
Usage: |
Furnace Liner |
Zirconia Content: |
89% |
Shape: |
Brick |
Material: |
Zirconium |
SiO2 Content (%): |
13%-16% |
Al2O3 Content (%): |
Leavings |
MgO Content (%): |
International Standard |
CaO Content (%): |
International Standard |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
0 |
SiC Content (%): |
0 |
Product Name: |
Fused Cast High Zirconia Brick |
Application: |
Glass Industry Furnace |
Raw Material: |
Alumina,zircon, |
Color: |
White |
BULK DENSITY: |
5.1-5.3 |
Certificate: |
ISO9001 |
Type: |
Manufacture |
Size: |
Customers' Requirement |
Usage: |
Furnace Liner |
Zirconia Content: |
89% |

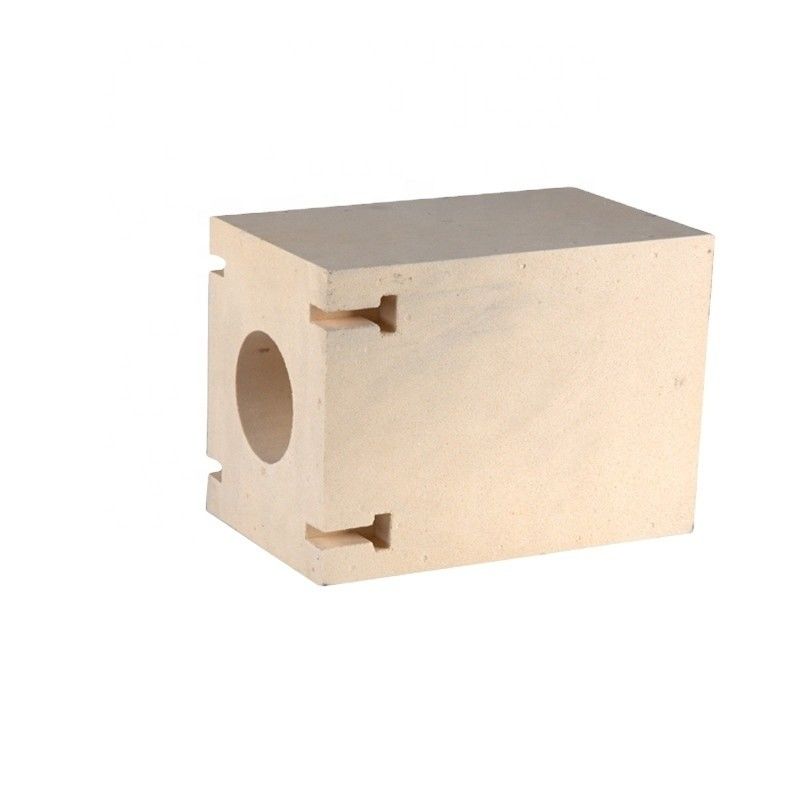

High Zirconia Fused Cast High
Zirconia Brick used for glass furnace with factory price
--excellent high temperature & corrosion resistance
--low blister and stoning potential
--high purity raw materials
--wide application in glass industry,ceramic fiber industry and construction field,etc.
Application field of fused cast high zirconia brick
1.Fused cast high zirconia brick has wide application in a wide range of super high temperature furnaces and kilns in military industry,science research, high melting point Metallurgical, laser crystal and electronic,etc.
2.For high quality and special glass furnaces such as TV glass, Borosilicate glass, Alumina silicate glass, Halogen lighting glass, Opal glass and Fiber glass.
3.Fused cast high zirconia brick mainly consists of HT-Z88-WS and HT-Z95-WS, and are used in sidewall, throat cover, throat support, electrode brick, dam brick parts.
Specification of Fused Cast High Zirconia Brick
| Item | TY-Z88-WS | TY-Z95-WS | ||
| Chemical Composition % | ZrO2 | ≥ | 89.00 | 93.60 |
| SiO2 | ≤ | 9.00 | 5.30 | |
| Al2O3 | ≤ | 1.00 | 1.00 | |
| Na2O | ≤ | 0.05 | 0.51 | |
| Others | ≤ | 1.60 | 1.0 | |
| Mineral Composition % | Baddeleyite | Typical | 89 | 94 |
| Glass Phase | 11 | 6 | ||
| Physical Properties | Cold Crushing Strength (MPa) | ≥ | 400 | 400 |
| Bulk Density (g/cm³) | Typical | 5.10 | 5.30 | |
| Liner Thermal Expansion (%) | 1000℃ | 0.65 | 0.70 | |
| 1500℃ | 0.10 | 0.30 | ||
Packing of Fused Cast High Zirconia Brick
1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.
Shipping of Fused Cast High Zirconia Brick
1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.
