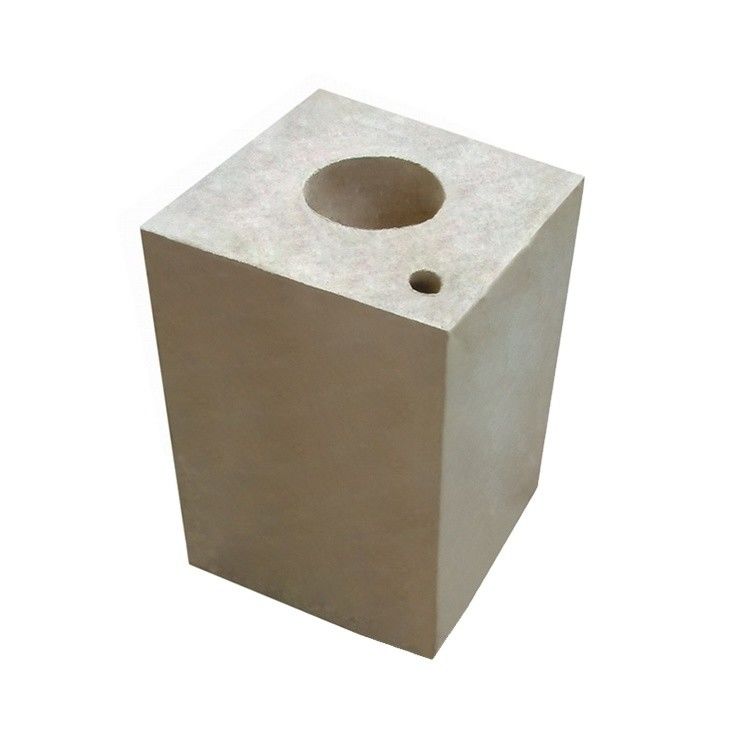

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace

Name: Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace
Brand: Henan Hongtai Kiln Refractory Co.,Ltd.
SKU: Hongtai
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: HT

Model Number: Hongtai

Payment & Shipping Terms

Price: $1,500.00 - $2,000.00/tons

Packaging Details: plywood cases for export, or other packages required by customer.

Supply Ability: 3000 Ton/Tons per Month AZS--33/36/41 Fused cast zirconia-corundum refractory bricks

Get Best Price

Product Details

Product Description

Highlight:

Shape:	Brick	Material:	Zirconium
SiO2 Content (%):	13%-16%	Al2O3 Content (%):	Leavings
MgO Content (%):	International Standard	CaO Content (%):	International Standard
Refractoriness (Degree):	1770°< Refractoriness< 2000°	CrO Content (%):	0
SiC Content (%):	0	Product Name:	Fused Cast High Zirconia Brick
Application:	Glass Industry Furnace	Raw Material:	Alumina,zircon,
Color:	White	BULK DENSITY:	5.1-5.3
Certificate:	ISO9001	Type:	Manufacture
Size:	Customers' Requirement	Usage:	Furnace Liner
Zirconia Content:	89%

Shape:	Brick
Material:	Zirconium
SiO2 Content (%):	13%-16%
Al2O3 Content (%):	Leavings
MgO Content (%):	International Standard
CaO Content (%):	International Standard
Refractoriness (Degree):	1770°< Refractoriness< 2000°
CrO Content (%):	0
SiC Content (%):	0
Product Name:	Fused Cast High Zirconia Brick
Application:	Glass Industry Furnace
Raw Material:	Alumina,zircon,
Color:	White
BULK DENSITY:	5.1-5.3
Certificate:	ISO9001
Type:	Manufacture
Size:	Customers' Requirement
Usage:	Furnace Liner
Zirconia Content:	89%

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace

Manufacturer supply High Zircon brick for Glass Furnace

Product Description

Description of High Zircon brick

The series of HT-High Zircon brick is fused cast high zirconia refractories which are specially designed refractory for glass furnace application. High Zircon brick is made of artificial synthesis high purity raw materials through special casting process. The crystalline texture consists of baddeleyite and with the characteristics of excellent high temperature & corrosion resistance, low blister and stoning potential. These advantages can prevent liquid glass from pollution effectively.

Features of High Zircon brick

--excellent high temperature & corrosion resistance
--low blister and stoning potential
--high purity raw materials
--wide application in glass industry,ceramic fiber industry and construction field,etc.

Application field of High Zircon brick

1.High Zircon brick has wide application in a wide range of super high temperature furnaces and kilns in military industry,science research, high melting point Metallurgical, laser crystal and electronic,etc.

2.For high quality and special glass furnaces such as TV glass, Borosilicate glass, Alumina silicate glass, Halogen lighting glass, Opal glass and Fiber glass.

3.High Zircon brick mainly consists of HT-Z88-WS and HT-Z95-WS, and are used in sidewall, throat cover, throat support, electrode brick, dam brick parts.

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace 1

Specifications

Specification of High Zircon brick

	Item		TY-Z88-WS	TY-Z95-WS
Chemical Composition %	ZrO2	≥	89.00	93.60
	SiO2	≤	9.00	5.30
	Al2O3	≤	1.00	1.00
	Na2O	≤	0.05	0.51
	Others	≤	1.60	1.0
Mineral Composition %	Baddeleyite	Typical	89	94
Mineral Composition %	Glass Phase	Typical	11	6
Physical Properties	Cold Crushing Strength (MPa)	≥	400	400
	Bulk Density (g/cm³)	Typical	5.10	5.30
	Liner Thermal Expansion (%)	1000℃	0.65	0.70
	Liner Thermal Expansion (%)	1500℃	0.10	0.30

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace 2

Packaging & Shipping

Packing of High Zircon brick

1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace 3

Shipping of High Zircon brick

1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace 4

Workshop corner

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace 5

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace 6

Customer visit

Excellent Thermal Shock Resistant Zircon Brick for Glass Industry Furnace 7
