Product Details
Place of Origin: Henan, China
Brand Name: HongTai
Model Number: JM 26 Insulation brick
Payment & Shipping Terms
Minimum Order Quantity: 100 pieces
Price: $0.18 - $0.88/pieces
Packaging Details: Fumigated wooden pallet, using paper or non-woven fabrics between layers separated, plastic shrink film protected outside, then the straps. Finally make the wooden pallet (95*95cm, 95*100cm) , usually 1.5T per pallet, 25T per container. or as your requirem
Supply Ability: 5000 Ton/Tons per Month JM26 Insulation brick
Shape: |
Brick |
Material: |
JM 26 Insulation Brick |
SiO2 Content (%): |
40~55 |
Al2O3 Content (%): |
30~60 |
MgO Content (%): |
0 |
CaO Content (%): |
0 |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
0 |
SiC Content (%): |
0 |
Product Name: |
JM 26 Insulation Brick |
Color: |
White |
Size: |
Customers' Requirement |
Application: |
Kiln |
Type: |
Insulation Fire Brick Factory |
Modulus Of Rupture (Mpa): |
0.8~3.5 |
Bulk Density: |
≤0.5~1.3g/cm3 |
OEM: |
YES |
Sample: |
Freely |
Port: |
Tianjin, Shanghai, Qingdao |
Shape: |
Brick |
Material: |
JM 26 Insulation Brick |
SiO2 Content (%): |
40~55 |
Al2O3 Content (%): |
30~60 |
MgO Content (%): |
0 |
CaO Content (%): |
0 |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
0 |
SiC Content (%): |
0 |
Product Name: |
JM 26 Insulation Brick |
Color: |
White |
Size: |
Customers' Requirement |
Application: |
Kiln |
Type: |
Insulation Fire Brick Factory |
Modulus Of Rupture (Mpa): |
0.8~3.5 |
Bulk Density: |
≤0.5~1.3g/cm3 |
OEM: |
YES |
Sample: |
Freely |
Port: |
Tianjin, Shanghai, Qingdao |

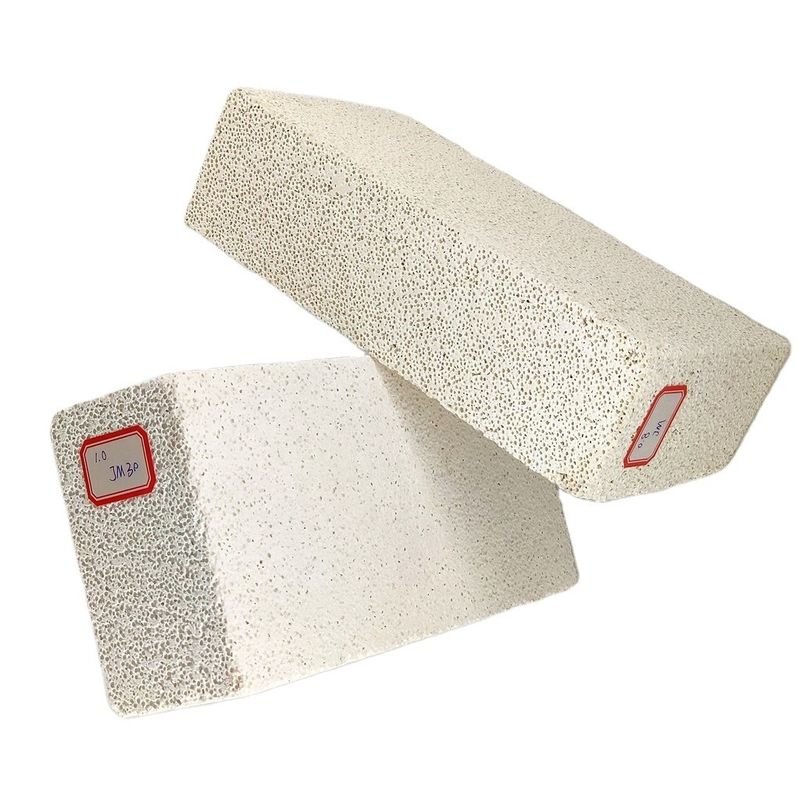

JM26 high temperature Insulation heat resistant brick
JM26 Insulation brick are made from good quality and superpure raw materials, with strictly classified fillings according to their grades. These fillings can form a uniform pore structure after burnt during the process of manufacture. Each grade of products has unique design to meet different thermal, physical and chemical demands.
The total weight of the furnace body and walls thickness can be reduced effectively,thermal efficiency and working condition can be improved,energy consumption can be lowered,produtivity and significant economic results can be achieved.
Feature of JM26 Insulation brick
·Light weight brick good for energy conservation.
·Low thermal conductivity and excellent heat resistance.
·Good volume stability at high temperature.
Production Process of JM26 Insulation brick brick:Crushing→Mixing→Shaping→Drying→Firing→Inspection→Packaging and Shipment
JM26 high temperature Insulation heat resistant brick
Physical and Chemical Indexes of Light Weight JM26 Insulation brick
| Brands | AL2O3%≥ | FE2O3≤ | BD G/CM3≤ | CCS MPA≥ | PLC ℃X H≤1.0% | TCS W/M.K≤ | ||
| 400℃ | 600℃ | 900℃ | ||||||
| MD-0.5 | 45 | 0.8 | 0.5 | 2 | 1350×12 | 0.18 | 0.22 | 0.26 |
| MD-0.6 | 55 | 0.8 | 0.6 | 2.5 | 1350×12 | 0.26 | 0.3 | 0.32 |
| MD-0.8 | 65 | 0.7 | 0.8 | 3 | 1450×12 | 0.28 | 0.32 | 0.36 |
| MD-1.0 | 72 | 0.6 | 1 | 4 | 1450×12 | 0.3 | 0.35 | 0.4 |
| Item | JM23 | JM26 | JM28 | JM30 |
| AL2O3(%) | 38-44 | 50-58 | 65-70 | 70-73 |
| Fe2O3(%) | 1 | 0.9 | 0.8 | 0.7 |
| Classification Temperature (℃) | 1350 | 1430 | 1540 | 1600 |
| Bulk Density (g/cm3) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 |
| Reheating Linear Change (%) | 1250℃ | 1400℃ | 1500℃ | 1550℃ |
| CT-30 ℃X 8H | -0.5 | -0.5 | -0.5 | -0.5 |
| Cold Crushing Strength (Mpa) | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 | 3.0-4.5 |
| Modulus of Rupture (Mpa) | 1.5 | 1.7 | 1.8 | 2 |
| Thermal conductivity400℃(W/m.k) | 0.25 | 0.27 | 0.32 | 0.41 |
| Thermal Expansion1000℃(%) | 0.5 | 0.7 | 0.8 | 0.9 |
| Item | B-1 | C-1 | C-2 |
| AL2O3(%) | 25-30 | 35-40 | 45-50 |
| Fe2O3(%) | 2 | 1 | 1 |
| Classification Temperature (℃) | 1000 | 1300 | 1400 |
| Bulk Density (g/cm3) | 0.8-1 | 0.8-1 | 0.8-1 |
| Cold Crushing Strength (Mpa) | 2-2.5 | 2.5-3.5 | 3.0-4.5 |
| Thermal conductivity400℃(W/m.k) | 0.17 | 0.23 | 0.25 |
What is the Shapes &Sizes of our JM26 Insulation brick?
| Straight | Split | Arch | Wedge | Tile | Other Shape |
| L×W×H(mm) 230×114×65 230×114×75 | L×W×H (mm) 230×114×25 230×114×32 230×114×37 230×114×50 | L×W×H/h(mm) 230×114×65/45 230×114×65/55 230×114×75/45 230×114×75/55 230×114×75/65 | L×W×H/h (mm) 230×114×65/45 230×114×65/55 220×114×75/45 220×114×75/55 220×114×75/65 | L×W×H (mm) 230×230×38 230×230×50 230×230×65 230×230×75 | Key brick, Skew brick, Soap, Checker, Neck, Taper, |
We also can make JM26 Insulation brick according to customers' drawing and requirements. | |||||
JM26 high temperature Insulation heat resistant brick
Applications of JM26 Insulation brick
JM26 Insulation brick refractory material can be used in linings or heat-insulating materials of the industries,
such as, ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns, etc
JM26 high temperature Insulation heat resistant brick
Shipping of JM26 Insulation brick
1. FEDEX/DHL/UPS/TNT for samples.
2. By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Delivery Time:3 days for common shape samples;15 days for special.
5.shape samples.Within 30 days for batch goods.
JM26 high temperature Insulation heat resistant brick
1. Payment: T/T, Western Union,LC; Usually 30% deposits,70% balance before delivery or negotiations to solve.
2. MOQ: Usually 1Tons,Customers can order certain PCS for JM26 Insulation brick.
3. Quality Warranty: 1 years.
4. Package Informations:
(1)Wooden pallet size:930*930mm,Load weight of each pallet:1-1.5 Tons.
(2)20 Foot Container can be loaded 25Tons,40 Foot Container can be loaded 28Tons.
JM26 high temperature Insulation heat resistant brick
Our Competitive Advantage:
1.Competitive Price. Make the products competitive in your market.
2.Abundant Experience. Prevent cracks and twist in magnesia carbon bricks.
3.Different Moulds. Save mould fees for you.
4.Strict Quality Control. Meet clients’ quality requirement.
5.Large stocks. Guarantee prompt delivery.
6.Professional Packing. Avoid damage and secure the goods in transportation.
If you want JM26 Insulation brick, please
Contact:Cindy Email: cindy@firebricks-supplies.com
Cell&Whats App: 0086-18623801271 Skype: cindy.tan929 QQ: 316024208
