Product Details
Place of Origin: Henan, China
Brand Name: Hongtai
Model Number: JM23, JM26, JM28, JM30, JM32
Payment & Shipping Terms
Minimum Order Quantity: 2 tons
Price: $600.00 - $1,000.00/tons
Shape: |
Brick |
Material: |
Mullite |
SiO2 Content (%): |
15-45 |
Al2O3 Content (%): |
38-75 |
MgO Content (%): |
International Standard |
CaO Content (%): |
International Standard |
Refractoriness (Degree): |
Common (1580°< Refractoriness< 1770°) |
CrO Content (%): |
International Standard |
SiC Content (%): |
International Standard |
Processing Service: |
Welding, Cutting, Moulding |
Product Name: |
Mullite Insulation Bricks |
Application: |
Industrial Furnaces Lining Insulation |
Color: |
White |
Size: |
230x114x65mm/230*114*75 Or Customer Required |
Bulk Density(g/cm3): |
0.3-1.0g/cm3 |
Name: |
Light Weight Insulating Mullite Brick |
Usage: |
Furnace Liner |
Certificate: |
ISO9001 |
Sample: |
Sample Provided Freely |
Type: |
Factory |
Shape: |
Brick |
Material: |
Mullite |
SiO2 Content (%): |
15-45 |
Al2O3 Content (%): |
38-75 |
MgO Content (%): |
International Standard |
CaO Content (%): |
International Standard |
Refractoriness (Degree): |
Common (1580°< Refractoriness< 1770°) |
CrO Content (%): |
International Standard |
SiC Content (%): |
International Standard |
Processing Service: |
Welding, Cutting, Moulding |
Product Name: |
Mullite Insulation Bricks |
Application: |
Industrial Furnaces Lining Insulation |
Color: |
White |
Size: |
230x114x65mm/230*114*75 Or Customer Required |
Bulk Density(g/cm3): |
0.3-1.0g/cm3 |
Name: |
Light Weight Insulating Mullite Brick |
Usage: |
Furnace Liner |
Certificate: |
ISO9001 |
Sample: |
Sample Provided Freely |
Type: |
Factory |

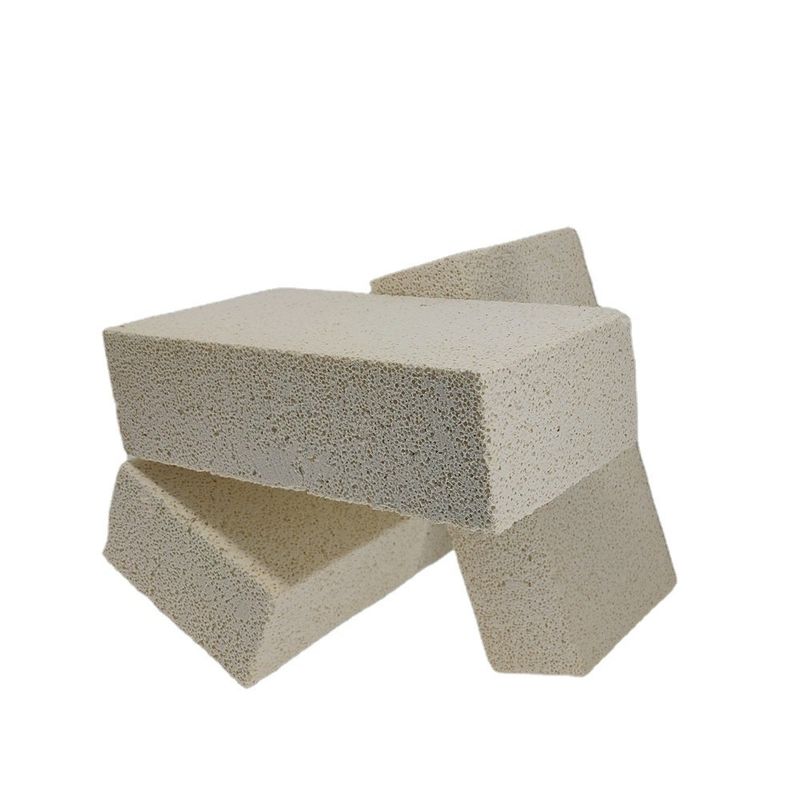

lightweight Mullite Insulation Brick JM26 used in ceramic furnace as kiln shelves
Heat Insulation lightweight Mullite Brick JM26
Light weight Mullite insulation brick is a kind of quality refractory insulation materials for resisting high temperature with features of light weight, low thermal conductivity, thermal insulation and high compression strength in the high temperature furnaces or kilns. lightweight bricks are mainly used for the top of hot blast stove, stack and bottom of blast furnace, regenerative chamber of glass melting furnace, lining of ceramic high temperature furnace and so on.
Mullite Insulation Refractory Brick can be classified into different types of 1350 lightweight brick, 1450 lightweight brick and 1550 lightweight brick according to different service temperature and into Lightweight Mullite Brick and Heavy Mullite Brick according to different bulk density.Specification
Mullite insulation brick is a kind of quality high temperature materials with the following excellent performance.
lightweight Mullite Insulation Brick JM26 used in ceramic furnace as kiln shelves
Mullite insulation brick Performance:
Low thermal conductivity and Low heat capacity
High Purity and low impurity content
Excellent high temperature strength
Good thermal shock resistance
Low expansive conductivity
Great resistance to acid and alkali erosion
Lightweight Mullite Insulation Bricks Features:
1.Excellent compression strength
2.Excellent heat stability
3.Low thermal conductivity
4.Low heat storage
5.High alumina, low iron and alkali flux content
6.Accurate dimension
7.designed packaging
lightweight Mullite Insulation Brick JM26 used in ceramic furnace as kiln shelves
Lightweight Mullite insulation Brick JM26 technical data:
| Brand Item | JM23 | JM26 | JM28 | JM30 |
| Max Temperature (°C) | 1260 | 1460 | 1540 | 1700 |
| Bulk Density (g/cm3) | 0.55-0.60 | 0.8 | 0.9 | 1.0 |
| Cold Crushing Strength (Mpa) | 1.2 | 1.6 | 2.1 | 2.5 |
| Modulus of Rupture (Mpa) | 0.9 | 1.4 | 1.6 | 2.1 |
| Reheating Linear Change (%) CT -30 °CX 8H | 1230 °C | 1400 °C | 1510 °C | 1620 °C |
| -0.5 | -0.5 | -0.5 | -0.9 | |
| Thermal Expansion 1100 °C( % ) | 0.5 | 0.7 | 0.7 | 0.8 |
| Thermal conductivity (W/m.k )400 °C | 0.14 | 0.27 | 0.32 | 0.41 |
| 600 °C | 0.16 | 0.29 | 0.34 | 0.43 |
| 800 °C | 0.18 | 0.31 | 0.36 | 0.44 |
| 1000 °C | 0.20 | 0.33 | 0.38 | 0.45 |
| Al2O3 % | 37 | 50 | 64 | 72 |
| Fe2O3 % | 1.0 | 1.0 | 1.0 | 0.5 |
lightweight brick common size
| size | ||
| L×W×H (mm) | L×W×H/h (mm) | L×W×H/h (mm) |
| 230×114×65 | 230×614×64 | 250×640×64 |
| 230×114×76 | 230×614×76 | |
| Other sizes according to customer requirements | ||
lightweight Mullite Insulation Brick JM26 used in ceramic furnace as kiln shelves
Application for lightweight Mullite Insulation Brick JM26:
Power Industry
Petrochemical industry
Metallurgical industry
Kiln insulation
Other insulation
Recommended to use as a primary hot face refractory lining or as back-up insulation behind other refractories in furnaces, kilns, flues, refining vessels and heaters, regenerators, gas producers and main, soaking pits, stress relieving furnaces, reactor chambers and similar high temperature industrial equipment.
lightweight Mullite Insulation Brick JM26 used in ceramic furnace as kiln shelves
Packing for Mullite insulation brick JM26:
Standard export wooden pallet with cardboard and PET strap.
1. Strong packing will protect the goods from any possible damage during transit.
2. Solid packing and overall stuffing can prevent the cases from vibration and jarring.
3. We must take necessary precaution that the packing can protect goods from pilferage or rain.
4. We can confirm that we take every possible precaution to ensure that our products reach our customers all over the world in prime conditon.
Shipping for Mullite insulation brick JM26:
By vessel or by train from any Chinese port, Samples can be delivered by International express.
Delivery:
15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom products, the shipping time will delay.
Sample:
Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.
Payment:
It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
Henan hongtai kiln refractory co., LTD. is well aware that there are thousands of demands from customers, which can be summarized in four aspects: reliable quality, timely delivery, reasonable price and considerate service.The company will continue to adhere to the corporate spirit of "contributing to society and serving customers" and the business philosophy of "mutual benefit, win-win, integrity, efficiency, preciseness and responsibility".Our company is willing to develop a wide range of technical exchanges with colleges and universities and colleagues from all walks of life at home and abroad in a flexible and diversified way.
Henan hongtai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management, strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service.Henan hongtai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.
Henan hongtai kiln refractory co., LTD. Main products are high alumina brick, clay brick, fused zirconium corundum brick, fireproof ball lightweight insulation brick, wear-resistant pouring material, corundum pouring material, low cement high strength pouring material, impermeable material, self-flowing material, plastic material, and various types of refractory materials.
1. Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractorys production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3. Export experiences:
Now we have gained a global sales network reaching Taiwan, Russia, South Korea, Vietnam, Pakistan, Bulgaria, French, India, Congo, Angola, South Africa, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester
