Product Details
Place of Origin: Henan, China
Brand Name: HongTai
Model Number: SK36,SK37,SK38,SK40
Payment & Shipping Terms
Price: $0.25 - $0.85/pieces
Packaging Details: on wooden pallets with plastic cover or customers' needs
Supply Ability: 3000 Ton/Tons per Month
Shape: |
Brick |
Material: |
Bauxite /corundum |
SiO2 Content (%): |
International Standard |
Al2O3 Content (%): |
40%-80% |
MgO Content (%): |
Little |
CaO Content (%): |
Little |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
0 |
SiC Content (%): |
Little |
Product Name: |
Fire Refractory Silica Brick |
Color: |
Yellow |
Size: |
Customizable |
Blast Furnace Refractory Bricks Type: |
Factory |
Porosity (%): |
16~23 |
Cold Crushing Strength(MPa): |
45~80 |
Refractoriness (oC) ≥: |
1730~1790 |
Linear Change(%),oC*2h: |
1300~1580 |
Blast Furnace Refractory Bricks Usage: |
Furnace Liner |
Certificate: |
ISO9001 |
Shape: |
Brick |
Material: |
Bauxite /corundum |
SiO2 Content (%): |
International Standard |
Al2O3 Content (%): |
40%-80% |
MgO Content (%): |
Little |
CaO Content (%): |
Little |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
0 |
SiC Content (%): |
Little |
Product Name: |
Fire Refractory Silica Brick |
Color: |
Yellow |
Size: |
Customizable |
Blast Furnace Refractory Bricks Type: |
Factory |
Porosity (%): |
16~23 |
Cold Crushing Strength(MPa): |
45~80 |
Refractoriness (oC) ≥: |
1730~1790 |
Linear Change(%),oC*2h: |
1300~1580 |
Blast Furnace Refractory Bricks Usage: |
Furnace Liner |
Certificate: |
ISO9001 |

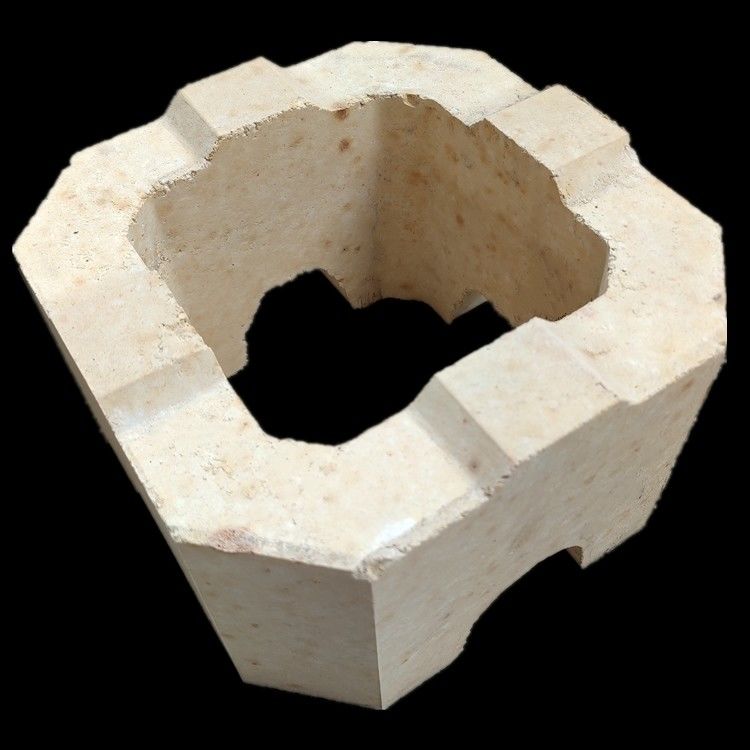

Refractory Bricks For High Alumina Sale With Heat Proof And Fire Resistant And Abrasion Resistant For Furnace And Steel
We are one of the blast furnace chequer brick Manufacturers in China. We offer an exclusive range of refractory bricks which are of optimum quality. Our range encompasses of refractory bricks, High Alumina Low Ferric Fire Bricks etc which are highly exclusive. We offer different shapes and sizes in our Blast furnace chequer brick which cannot be availed through anywhere else. We use the best quality material to manufacture our refractory bricks so that there is no compromise in their quality. We offer our refractory bricks at quite reasonable prices and also deliver them well within the stipulated time avoiding all delays.
Blast furnace chequer brick are produced with selected bauxite chamotte by advanced process and strict quality control. The main mineral components are corundum and mullite phases. It(High Alumina Brick,Alumina Brick,Refractory Alumina) features excellent high temperature mechanics and chemical corrosion resistance.
Blast furnace chequer brick Feature
Low thermal conductivity
Excellent acid and base slagging resistance
High refractoriness
Excellent thermal shock resistance
Excellent mechanical strength
| Items | Technical Data | ||||
| International code name | SK35 | SK36 | SK37 | SK38 | SK40 |
| Chinese code name | LZ-48 | LZ-55 | LZ-65 | LZ-75 | LZ-80 |
| Al2O3 min % | 48 | 55 | 65 | 75 | 80 |
| Fe2O3 max % | 2 | 2 | 2 | 2 | 2 |
| Refractoriness oC min. | 1750 | 1770 | 1790 | 1790 | 1790 |
| Refractoriness under Load C min. | 1420 | 1470 | 1500 | 1520 | 1530 |
| Permanent Linear Change % | 1450 C×2h | 1500 C×2h | 1500 C×2h | 1500 C×2h | 1500 C×2h |
| +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 | |
| Apparent Porosity max. % | 22 | 22 | 23 | 23 | 21 |
| Cold Crushing Strength mim. | 39 | 44 | 49 | 54 | 65 |
Note :
Size Tolerance : + / - 1.5 % or + / - 2 Mm Which Ever is Greater
Above Specified Values Relate to Machine Pressed Standard Bricks.
P L C Values are for Specimens Heated At Given Temp. for 2 Hours
Blast furnace chequer brick Applications:
1. Steel furnaces
2. Iron making furnaces
3. Glass kiln
4. Ceramic tunnel kiln
5. Cement kiln
Packaging of blast furnace refractory bricks
1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
Shipping of blast furnace refractory bricks
1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.
Why Choose us?
Our refractory bricks have passed the ISO international certified. High purity raw material, scientific formula, advanced technology and professional guide all contribute to our qualified the best selling of blast furnace refractory bricks from china plant production. Over 30 years producing and marketing experience, we have developed stable customer base overseas and kept long-term cooperation. Need refractories for high temperature furnace fuel? Contact us, We will never let you down.
