Home > products > AZS Refractory Bricks > High MgO Content Second Hand White AZS Blocks for Recycling International Standard

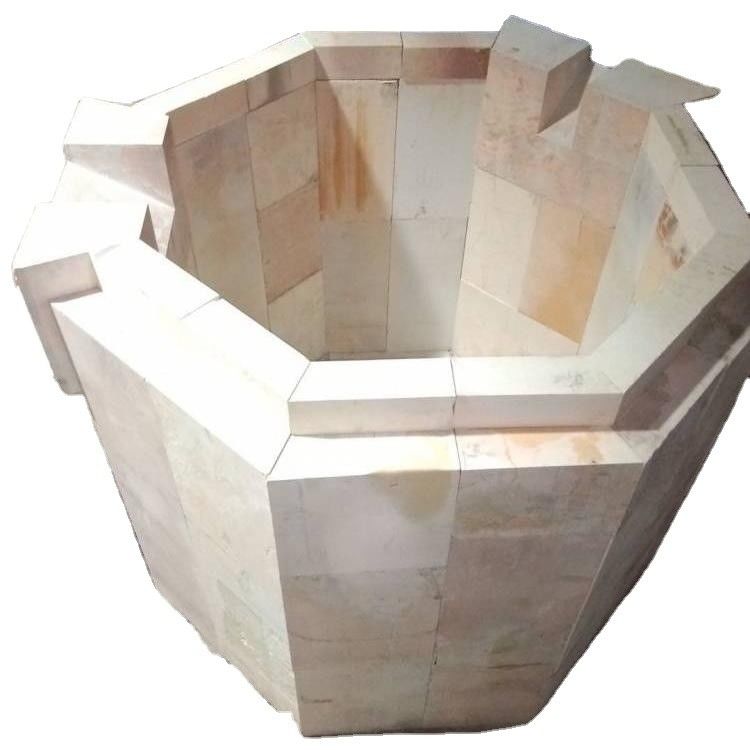

High MgO Content Second Hand White AZS Blocks for Recycling International Standard

Product Details

Place of Origin: Henan, China

Brand Name: Hongtai

Model Number: AZS 33#, AZS 36#, AZS 41#

Payment & Shipping Terms

Price: $1,000.00 - $2,000.00/tons

Packaging Details: plywood cases for export, or other packages required by customer.

Supply Ability: 3000 Ton/Tons per Month Refractory used AZS bricks second hand AZS blocks brick

Get Best Price
Highlight:
Shape:
Block
Material:
Alumina,zircon,corundum
SiO2 Content (%):
13%-16%
Al2O3 Content (%):
45%
MgO Content (%):
International Standard
CaO Content (%):
Little
Refractoriness (Degree):
Common (1580°< Refractoriness< 1770°)
CrO Content (%):
0.2-0.3%
SiC Content (%):
1.2-1.4%
Processing Service:
Bending, Welding, Punching, Decoiling, Cutting, Moulding
Product Name:
Refractory Used AZS Bricks Second Hand AZS Blocks
Application:
Glass Industry Furnace
Size:
Customers' Requirement
Raw Material:
Alumina,zircon,corundum
Bulk Density(g/cm3):
3.75--3.95
Sample:
Provide
Color:
White
Certificate:
ISO9001
Type:
Manufacture
Usage:
Furnace Liner
Shape:
Block
Material:
Alumina,zircon,corundum
SiO2 Content (%):
13%-16%
Al2O3 Content (%):
45%
MgO Content (%):
International Standard
CaO Content (%):
Little
Refractoriness (Degree):
Common (1580°< Refractoriness< 1770°)
CrO Content (%):
0.2-0.3%
SiC Content (%):
1.2-1.4%
Processing Service:
Bending, Welding, Punching, Decoiling, Cutting, Moulding
Product Name:
Refractory Used AZS Bricks Second Hand AZS Blocks
Application:
Glass Industry Furnace
Size:
Customers' Requirement
Raw Material:
Alumina,zircon,corundum
Bulk Density(g/cm3):
3.75--3.95
Sample:
Provide
Color:
White
Certificate:
ISO9001
Type:
Manufacture
Usage:
Furnace Liner
High MgO Content Second Hand White AZS Blocks for Recycling International Standard

Refractory used AZS bricks second hand AZS blocks brick

Product Description

 Recycled AZS brick for Glass Furnace bottom is remove from glass kiln, and kept in good condition .We can reprocess waste AZS grog scrap according to your specification or requirements.

Fused zirconia corundum brick(also known as AZS brick) is made by the process of completely melting the raw material firstly and then cast in the mold, finally cooling, solidification. This product shrinkage should be paid special attention in using, which is caused during the volume shrinkage in the condensation process. Fused zirconia corundum brick casting methods divide into ordinary casting, tilting casting, no shrinkage casting and quasi-no shrinkage casting. AZS products with different casting methods can meet the use requirements of various parts in the ceramic frit furnace, spent flower alkali furnace, glass kiln.

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 0

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 1



There are two using ways of Recycled AZS brick for Glass Furnace bottom :

1. large piece of recycled waste AZS gorg scrap, generally used to re-polish and reprocess to be new brick, can be used in the glass kiln, that will save costs.

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 2

2. small piece of waste AZS grog Scrap, because of  small size, it can only be used to break into unshaped material.

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 3

Recycled AZS brick for Glass Furnace bottom

Our Recycled AZS brick are cleared by eliminating the glass slag from surface, with chemical composition and physical indicators same as new products.It is high efficient and can save costs for customers.

Chemical indicators



Item  AZS-33 AZS-41 AZS-36
Al2O3 % Leavings Leavings Leavings
ZrO2 % 32.0~36.0 40.0~44.0 35.0~40.0
SiO2 % ≤ 16.0 13.0 14.0
Na2O % 1.45 1.3 1.45
Fe2O3+TiO2+CaO+MgO+Na2O+K2O 2.0 2.0 2.0
Fe2O3+TiO2 0.3 0.3 0.3
Bulk density  g/cm2 3.75 3.95 3.80
Apparent porosity  % 1.5 1.0 1.0
Pefiningtemperature on glass  °C ≥ 1400 1400 1400



Characteristics of fused zirconia corundum bricks for glass kiln

Ordinary glass melting furnace wall bricks generally use a shallow pool structure with a thickness of 250mm and a height of about 1350mm. The wall bricks are made of fully oxidized obliquely cast fused zirconia corundum. Generally, 36#AZS is used for the melting zone, 33#AZS is used for the clarification zone, and 41#AZS is used for the corner. Under the same quality conditions, the high-grade bricks are more resistant to erosion, but the high-grade bricks are prone to bursting when the residual amount of erosion is less than 50 mm, and also designed as a layered structure or a deep pool structure. With the increase of kiln age and the use of lower layer insulation and bubbling, the erosion of the lower pool wall is more, and it is not easy to inspect. Some manufacturers have thinned the lower pool wall when discharging water, so the quality of the lower pool wall should also be taken seriously. In order to gradually extend the life of domestic glass melting furnaces, the production technology of fused zirconium corundum bricks can be improved, and the use of pool bricks is also essential.

Workshop corner

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 4



Our Product





High MgO Content Second Hand White AZS Blocks for Recycling International Standard 5

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 6

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 7

Our Services

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 8

1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.

2.Free sample of dry ramming mass

Sample and trial order are accepted for the quality evaluation

3.Strict quality control

Arrange production on time and control quality strictly.

4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.

5.Professional Services

Provide all the detailed news and pictures from order to delivery;offer relative export documents and original certificate if needed;warm and considerable after-sale service.

High MgO Content Second Hand White AZS Blocks for Recycling International Standard 9

Henan hongtai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management, strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service.Henan hongtai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.
Henan hongtai kiln refractory co., LTD. Main products are high alumina brick, clay brick, fused zirconium corundum brick, fireproof ball lightweight insulation brick, wear-resistant pouring material, corundum pouring material, low cement high strength pouring material, impermeable material, self-flowing material, plastic material, and various types of refractory materials.For different industries, the cement industry with anti-flaking high-alumina bricks, alkali resistant bricks, phosphate bricks;Boiler industry USES all kinds of brand wear-resisting brick, corundum brick, mullite brick and other finalizing materials.The company insists on "product quality is the life, enterprise integrity is the foundation", in the fierce market competition, won many users' trust and praise.The products are sold all over the country, as far as Vietnam, India, Korea, Pakistan, kazakhstan, other southeast Asian countries and regions.
