Product Details
Place of Origin: Henan, China
Brand Name: HT
Model Number: Follow
Payment & Shipping Terms
Price: $300.00 - $600.00/tons
Packaging Details: Packaging of magnesia carbon bricks
1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.
Supply Ability: 3000 Ton/Tons per Month
Shape: |
Brick |
Material: |
MgO-Carbon Brick |
SiO2 Content (%): |
International Standard |
Al2O3 Content (%): |
Little |
MgO Content (%): |
92%-97% |
CaO Content (%): |
International Standard |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
International Standard |
SiC Content (%): |
International Standard |
Product Name: |
Magnesia Carbon Bricks For Converter Melt Line Bottom Brick |
Color: |
Black |
Application: |
Steel Ladle |
Size: |
Customizable |
Type: |
Factory |
BD Gm/Cc Min.: |
2.85-2.90 |
A.P. % Max.: |
5.5-7 |
CCS Kg/Cm2 Min.: |
350-400 |
MOR Kg/Cm3: |
90-120 |
A.T. % Max Coked A 1000°C: |
13-14 |
Shape: |
Brick |
Material: |
MgO-Carbon Brick |
SiO2 Content (%): |
International Standard |
Al2O3 Content (%): |
Little |
MgO Content (%): |
92%-97% |
CaO Content (%): |
International Standard |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
International Standard |
SiC Content (%): |
International Standard |
Product Name: |
Magnesia Carbon Bricks For Converter Melt Line Bottom Brick |
Color: |
Black |
Application: |
Steel Ladle |
Size: |
Customizable |
Type: |
Factory |
BD Gm/Cc Min.: |
2.85-2.90 |
A.P. % Max.: |
5.5-7 |
CCS Kg/Cm2 Min.: |
350-400 |
MOR Kg/Cm3: |
90-120 |
A.T. % Max Coked A 1000°C: |
13-14 |

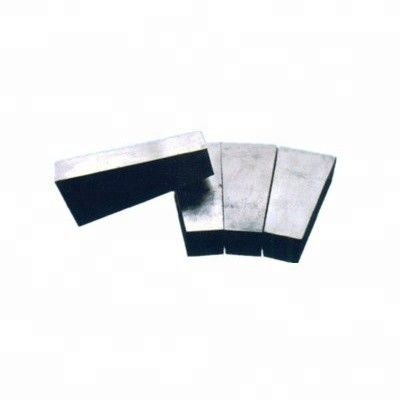

Magnesia Carbon Bricks for Converter Melt Line Bottom Brick
Megnesia Carbon brick is the non-fired basic refractory material. It improves the corrosion resistance and slag resistance to add a certain amount of graphite.
We offer high quality Magnesia carbon brick that is a superior product. It is made from quality fused macro-crystalline magnesia, graphite and some additives by high-pressure shaping. With good resistance to thermal shock, corrosion, erosion and oxidation, it is a kind of ideal material for the working lining of the converter and EAF as well as slag line region of ladles.
Material and Technique:
1. Raw materials use fused magnesia, instead of sintered magnesia
Why choose fused magnesia?
Fused magnesia: large grain, less impurities, less silicate phase, good grain directly bonding with less grain boundaries.
Sintered magnesia: fine grain, more impurity and silicate phase, poor directly bonding.
2.The carbon material is mainly scaly graphite
3.B4C or Al2O3 anti-oxidant is added accoring to your requirement, to improve magnesia carbon brick's anti-oxidant properties.
Properties: Magnesia-Carbon brick has good performance in thermal resistance, corrosion resistance and spalling resistance.
Application : widely used in converters, EAFs, ladles and refining furnaces and other Carbon-Containing refractory material.
Magnesia Carbon Bricks for Converter Melt Line Bottom Brick
Magnesia Carbon Bricks for Converter Melt Line Bottom Brick
Packaging of magnesia carbon bricks
1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.
Shipping of magnesia carbon bricks
1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.
Magnesia Carbon Bricks for Converter Melt Line Bottom Brick
1. How can I get your prompt quotation?
We can give you reply with quotation quickly if you kindly send the inquiry with the detail, such as the quantity, the specifications and the application of the products.
2. What is the MOQ (minimum order quantity)?
1000 pcs is OK.
3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.
4. After an order is placed, when to deliver?
15-25days after confirming the order.
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don't conform to customer's samples or have quality problems, our company will be responsible to make compensation for it based on enough evidences.
