Product Details
Place of Origin: Henan, China
Brand Name: HONGTAI
Model Number: any size
Payment & Shipping Terms
Minimum Order Quantity: 10 tons
Price: $150.00 - $500.00/tons
Supply Ability: 100 Ton/Tons per Week
Shape: |
Brick |
Material: |
Alumina Block |
SiO2 Content (%): |
/ |
Al2O3 Content (%): |
48-80% |
MgO Content (%): |
Little |
CaO Content (%): |
0.2-0.4% |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
/ |
SiC Content (%): |
/ |
Processing Service: |
Moulding |
Product Name: |
High Alumina Brick |
Application: |
Industrial Furnaces |
Color: |
Light Yellow |
Raw Material: |
High Alumina Bauxite |
Size: |
Customized Size |
Keyword: |
High Aluminium Brick |
BULK DENSITY: |
2.0-2.5g/cm3 |
Sample: |
Freely |
Packing: |
Standard Wooden Pallet |
Delivery Time: |
10-20days |
Shape: |
Brick |
Material: |
Alumina Block |
SiO2 Content (%): |
/ |
Al2O3 Content (%): |
48-80% |
MgO Content (%): |
Little |
CaO Content (%): |
0.2-0.4% |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
/ |
SiC Content (%): |
/ |
Processing Service: |
Moulding |
Product Name: |
High Alumina Brick |
Application: |
Industrial Furnaces |
Color: |
Light Yellow |
Raw Material: |
High Alumina Bauxite |
Size: |
Customized Size |
Keyword: |
High Aluminium Brick |
BULK DENSITY: |
2.0-2.5g/cm3 |
Sample: |
Freely |
Packing: |
Standard Wooden Pallet |
Delivery Time: |
10-20days |

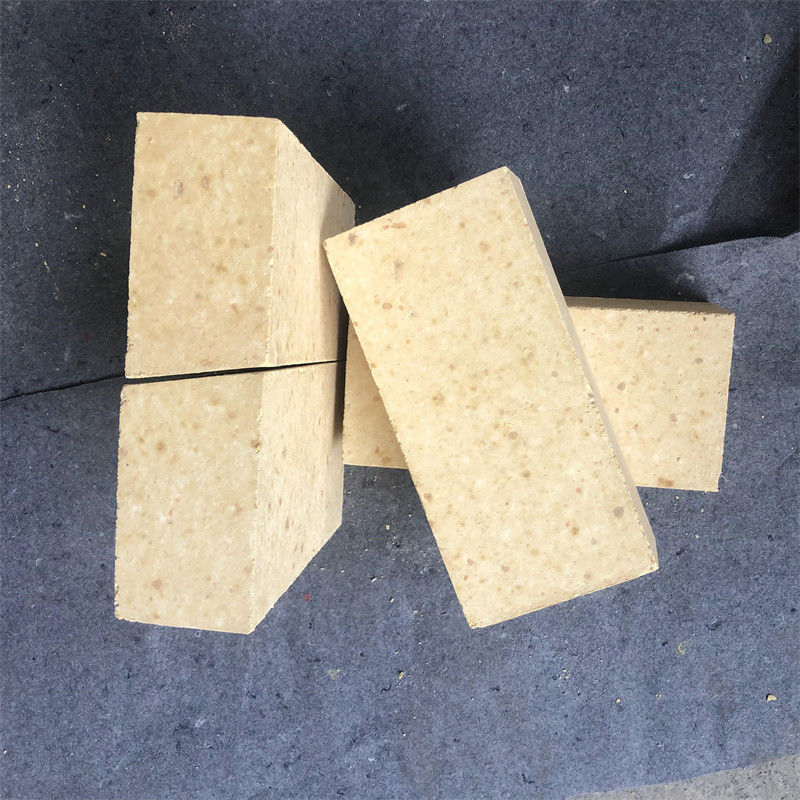

Chinese supplier high quality high alumina brick used for blast furnace
Introduction to high alumina bricks
Aluminum refractory products with aluminum oxide (Al2O3) content higher than 48%.
A neutral refractory with an alumina content of more than 48%. It is formed and calcined from bauxite or other raw materials with high alumina content. High thermal stability, refractoriness above 1770℃. It has good slag resistance and is used for the lining of steelmaking electric furnaces, glass melting furnaces, cement rotary furnaces, etc.
High-load soft, low-creep high-alumina bricks [1] are high-grade refractories made of super-grade bauxite, fused corundum, and fused mullite as the main raw materials.
High alumina brick is a kind of neutral refractory material with alumina content above 48%. It is formed and calcined from alumina or other raw materials with high alumina content. High thermal stability, refractoriness above 1770℃. It has good slag resistance and is used for lining steel-making electric furnaces, glass melting furnaces, cement rotary furnaces, etc.
High alumina brick is a kind of refractory material. It is an aluminum silicate refractory product with aluminum oxide (Al2O3) content higher than 48%. The main component of this refractory brick is AL2O3
Classification of high alumina bricks
1. Classified by Al2O3 content in high alumina bricks
Class Ⅰ-Al2O3 content>75%
Class Ⅱ-Al2O3 content is 60~75%
Class Ⅲ-Al2O3 content is 48-60%.
If Al2O3 content is higher than 80%, it is called super high alumina brick
If Al2O3 content is higher than 90%, it is called corundum brick.
Chinese supplier high quality high alumina brick used for blast furnace
Characteristics of high alumina refractory brick:
1. High refractoriness.
2. Good spalling resistance and wear resistance.
3. Good corrosion resistance.
4. Good thermal shock resistance.
5. High mechanical strength.
6. High-temperature creep rate is low.
a. Refractoriness
The refractoriness of high-alumina bricks is higher than that of clay bricks and semi-silica bricks, reaching 1750~1790℃, which belongs to advanced refractory materials.
b, load softening temperature
Because of the high Al2O3 in high alumina products, less impurities and less fusible glass body, the softening temperature under load is higher than that of clay bricks, but because mullite crystals do not form a etwork structure, the softening temperature under load is still lower than that of silica bricks.
c. Slag resistance
There are more Al2O3 in high alumina bricks, which are close to neutral refractory materials, and can resist the erosion of acidic slag and alkaline slag.
Chinese supplier high quality high alumina brick used for blast furnace
Specification of High alumina bricks:
Item | High alumina refractory checker brick | ||||
International code name | SK-35 | SK-36 | SK-37 | SK-38 | SK-40 |
AL2O3 %min | 48 | 55 | 65 | 75 | 80 |
Fe2O3 %max | 2 | 2 | 2 | 2 | 2 |
Refractoriness °C, min | 1760 | 1770 | 790 | 1790 | 1820 |
Refractoriness under load (0.2MPa) °C, min | 1420 | 1450 | 1500 | 1520 | 1530 |
Linear change on reheating (1500°C, 2h)% | +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 |
Apparent porosity % max | 22 | 22 | 23 | 23 | 22 |
Cold crushing strength MPa min | 35 | 40 | 45 | 50 | 55 |
Bulk Density, g/cm3 min | 2.12~2.22 | 2.25~2.4 | 2.3~2.5 | 2.4~2.6 | 2.5~2.7 |
Chinese supplier high quality high alumina brick used for blast furnace
High alumina refractory bricks are widely used in all parts of furnace lining for middle and small capacity furnace such as glass furnace, blast furnace, hot-air furnace, cement furnace,chemical furnace and other heating engineering equipment.
Packing:
Standard export wooden pallet with cardboard and PET strap.
1. Strong packing will protect the goods from any possible damage during transit.
2. Solid packing and overall stuffing can prevent the cases from vibration and jarring.
3. We must take necessary precaution that the packing can protect goods from pilferage or rain.
4. We can confirm that we take every possible precaution to ensure that our products reach our customers all over the world in prime conditon.
Shipping:
By vessel or by train from any Chinese port, Samples can be delivered by International express.
Delivery:
15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom products, the shipping time will delay.
Sample:
Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.
Payment:
It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
Henan hongtai kiln refractory co., LTD. is establised in 2012,located in Xinmi City, 40 kilometers southwest of Zhengzhou City in Henan Province, close to JingGuang,Longhai railway lines, with road transport facilities.Rich resoures of Refractory materials, adequate and qualified fuel in this area, provide unique conditions for refractory production,shipping and refractory industry development.
Henan hongtai kiln refractory co., LTD. has been always adhere to the principle of "quality first, credibility first, users first, quanlity and efficiency", has won the honor of "national measurement of qualified units""service standardization standards unit",which are recognized by higher office, was rated as Henan Province Contract and Keeping Promises Company, and has passed through ISO 9001:2000 Quality Mnagement System Confirmatrion, In order to meet the needs of market developemtn, we establish a "production, learning,research"strategic partnership with High Temperature Research Institute of Henann University of Science and Tchnology,and maintain long-term technical cooperation with Luoyang refractory research Institutions, the Iron and Steel Desigh Institute, Wuhan Iron and Steel Design Istitute and other scientific research institutions.Constantly adjust the production process,update product quality,built a solid foundation for wining a higher market hornor. Besides,all staff of high and low temperature furnace desigh, installation, manufacture, commissioning capacity of the company commit to every client: According to the different needs of users, we will thank all users' care by better service,higher product quality!
Production Equipments:
Test Equipments:
The products are sold all over the country, as far as Vietnam, India, Pakistan, kazakhstan, and other southeast Asian countries and regions.
