Product Details
Place of Origin: Henan, China
Brand Name: hongtai
Model Number: standard size,Customer's Requirement
Payment & Shipping Terms
Price: $200.00 - $700.00/tons
Packaging Details: silica brick packaging detials:
Fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finally using straps. Or as your requirements.
Shipping:
By vessel or train from Chinese po
Supply Ability: 3000 Ton/Tons per Month silica brick
Shape: |
Brick |
Material: |
Silica Brick |
SiO2 Content (%): |
>94 |
Al2O3 Content (%): |
<1 |
MgO Content (%): |
Non |
CaO Content (%): |
Non |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
Non |
SiC Content (%): |
<1 |
Name: |
Silica Brick |
Product Name: |
Silica Refractory Brick For High Temperature Furnace |
Color: |
Yellow |
Application: |
Furnace |
Size: |
Customizable |
Usage: |
Kiln |
Raw Material: |
Silica Powder |
Type: |
Manufacture |
Certificate: |
ISO9001 |
BULK DENSITY: |
1.85-1.9 |
Shape: |
Brick |
Material: |
Silica Brick |
SiO2 Content (%): |
>94 |
Al2O3 Content (%): |
<1 |
MgO Content (%): |
Non |
CaO Content (%): |
Non |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
Non |
SiC Content (%): |
<1 |
Name: |
Silica Brick |
Product Name: |
Silica Refractory Brick For High Temperature Furnace |
Color: |
Yellow |
Application: |
Furnace |
Size: |
Customizable |
Usage: |
Kiln |
Raw Material: |
Silica Powder |
Type: |
Manufacture |
Certificate: |
ISO9001 |
BULK DENSITY: |
1.85-1.9 |

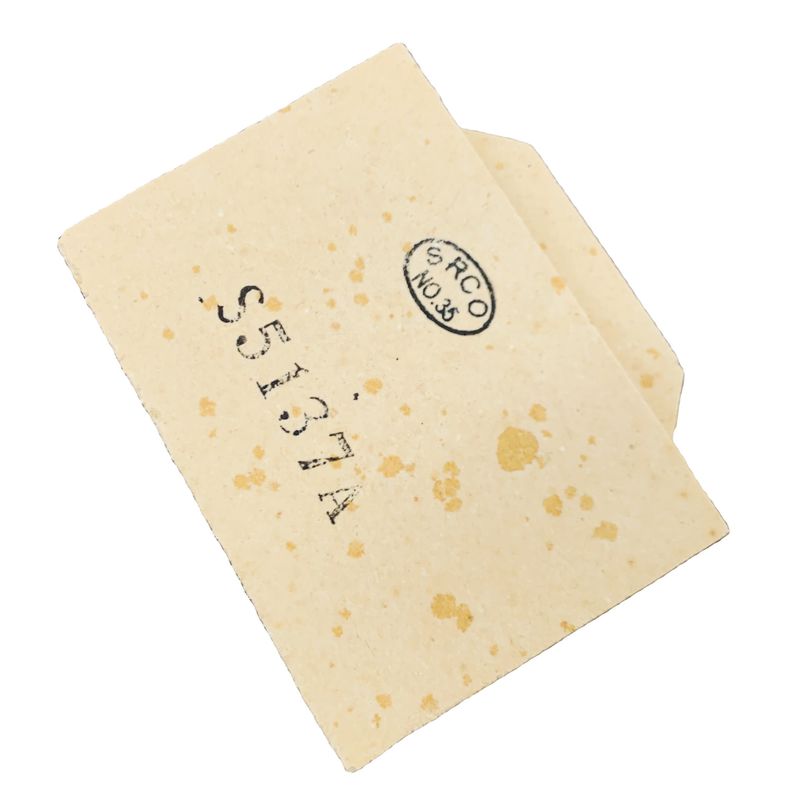

Silica Refractory Brick for High Temperature Furnace
Silica Refractory Brick for High Temperature Furnace is a kind of refractory brick which refractoriness is not very high,but the load softening temperature is higher, high temperature structure strength, and more than 600C.
Characteristics of Silica Refractory Brick for High Temperature Furnace:
1.Good acid and erosion resistance, powerful anti high-temperature strength.
2.Soften melting temperature is 1620~1670 °C.
3.Low thermal shock resistance.
4.Natural silica as raw material, plus regular mineralizer.
5.Ensure good bonding and structural strength of furnace.
6.Good heat resistance and long service life.
Technical Date:
| Item | Properties | |||
| SiO2,% | 96 | 96 | 95 | 95 |
| Fe2O3 ,% | 0.8 | 1.0 | 1.2 | 1.2 |
| Melt index,% | 0.5 | - | 0.7 | - |
| Cold Crushing strength MPa, | 35(30) | |||
| Softening temperature under load,°C | 1680 | 1670 | 1660 | 1650 |
| Apparent porosity % | 22(24) | |||
| Bulk density,g/cm3 | 1.85-1.9 | |||
| True density,g/cm3 | 2.34 | 2.35 | ||
| Application | sodium silicate furnace,ceramic frit metallurgical furnace and other furnaces | |||
Application of Silica Refractory Brick for High Temperature Furnace:
1.Glass melting furnace, ceramic frit kiln, sodium silicate furnace, soaking furnace, ceramic kiln, etc
2.Coke oven's coking chamber, combustion chamber walls, steel open-hearth's regenerator and sediment chamber, etc.
3.Load-bearing parts of high temperature hot air furnace and acid open-hearth furnace roof, etc.
4.Natural silica as raw material, plus regular mineralizer.
5.Ensure good bonding and structural strength of furnace.
6.Good heat resistance and long service life.
Packaging detials:
Silica Refractory Brick for High Temperature Furnace is packaged with fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finally using straps. Or as your requirements.
Shipping:
By vessel or train from Chinese ports.
1.Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractorys production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3.Export experiences:
Now we have gained a global sales network reaching Taiwan, Russia, Korea, Vietnam, Pakistan, Bulgaria, French, India, Egypt,Congo, Angola, South Africa, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester
Our competitive Advantage:
1.Competitive Price. Make the products competitive in your market.
2.Quick Response:We promise quick response at the very first moment when we received your request. 3.Superior Customer Service:The company provides after sales service ensuring customer’s satisfactions,we believe in Long term partnership bringing loyalty.
4.We had been on this filed for many years and we have our own research team,the prouduction process could be concrolled strictly.
5.We have developed stable customer base overseas and kept long-term cooperation.
