Product Details
Place of Origin: Henan, China
Brand Name: HongTai
Model Number: Anti-Strip Aluminum Brick
Payment & Shipping Terms
Price: $0.50 - $2.00/pieces
Packaging Details: wooden pallet with paper each layer, wrapped with thick paper and PVC film outside.
Supply Ability: 3000 Ton/Tons per Month high alumina refractory brick
Shape: |
Brick |
Material: |
Bauxite /corundum |
SiO2 Content (%): |
International Standard |
Al2O3 Content (%): |
75% |
MgO Content (%): |
0 |
CaO Content (%): |
0.01 |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
0.1~0.3% |
SiC Content (%): |
0 |
Product Name: |
Amina Refractory Brick |
Color: |
Yellow |
Size: |
Customizable |
Type: |
Factory |
Anti-Strip Aluminum Brick Porosity (%): |
23 |
Cold Crushing Strength(MPa): |
50 |
Refractoriness (oC) ≥: |
1730~1790 |
Linear Change(%),oC*2h: |
1300~1580 |
Usage: |
Furnace Liner |
Certificate: |
ISO BV |
Shape: |
Brick |
Material: |
Bauxite /corundum |
SiO2 Content (%): |
International Standard |
Al2O3 Content (%): |
75% |
MgO Content (%): |
0 |
CaO Content (%): |
0.01 |
Refractoriness (Degree): |
1770°< Refractoriness< 2000° |
CrO Content (%): |
0.1~0.3% |
SiC Content (%): |
0 |
Product Name: |
Amina Refractory Brick |
Color: |
Yellow |
Size: |
Customizable |
Type: |
Factory |
Anti-Strip Aluminum Brick Porosity (%): |
23 |
Cold Crushing Strength(MPa): |
50 |
Refractoriness (oC) ≥: |
1730~1790 |
Linear Change(%),oC*2h: |
1300~1580 |
Usage: |
Furnace Liner |
Certificate: |
ISO BV |
High Alumina Lining Bricks SK38 For Thermal
Equipment Lining Use
High Alumina Lining Bricks is a kind of refractory material. The main component of this refractory brick is AL2O3. Aluminum silicate refractory products with aluminum oxide (Al2O3) content higher than 48%.
High thermal stability, fire resistance above 1770 ℃. It has good slag resistance and is used for lining steel-making electric furnaces, glass melting furnaces, cement rotary furnaces, etc.
According to the content of Al2O3 in High Alumina Lining Bricks SK38 For Thermal Equipment Lining Use, it is usually divided into three grades:
Level Ⅰ-Al2O3 content >75%;
Grade Ⅱ-Al2O3 content is 60~75%;
Grade Ⅲ-Al2O3 content is 48~60%.
The production process of High Alumina Lining Bricks SK38
1.Production Process
1)Raw material to factory→checkout→burdening→stirring→mixing→taking out the raw material,
2)Crushing→Mixing→Shaping→Drying→Firing→Inspection→Packaging and Shipment.
2.Quality Assurance Process
1)Going out the furnace→checkout→packing→qualified product→putting in storage→sale,
2)The process from raw to product are strictly tested by equipment.
Physical and chemical index of High Alumina Lining Bricks
| Items | Technical Data | ||||
| International code name | SK35 | SK36 | SK37 | SK38 | SK40 |
| Chinese code name | LZ-48 | LZ-55 | LZ-65 | LZ-75 | LZ-80 |
| Al2O3 min % | 48 | 55 | 65 | 75 | 80 |
| Fe2O3 max % | 2 | 2 | 2 | 2 | 2 |
| Refractoriness oC min. | 1750 | 1770 | 1790 | 1790 | 1790 |
| Refractoriness under Load C min. | 1420 | 1470 | 1500 | 1520 | 1530 |
| Permanent Linear Change % | 1450 C×2h | 1500 C×2h | 1500 C×2h | 1500 C×2h | 1500 C×2h |
| +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 | +0.1~-0.4 | |
| Apparent Porosity max. % | 22 | 22 | 23 | 23 | 21 |
| Cold Crushing Strength mim. | 39 | 44 | 49 | 54 | 65 |
Workshop corner

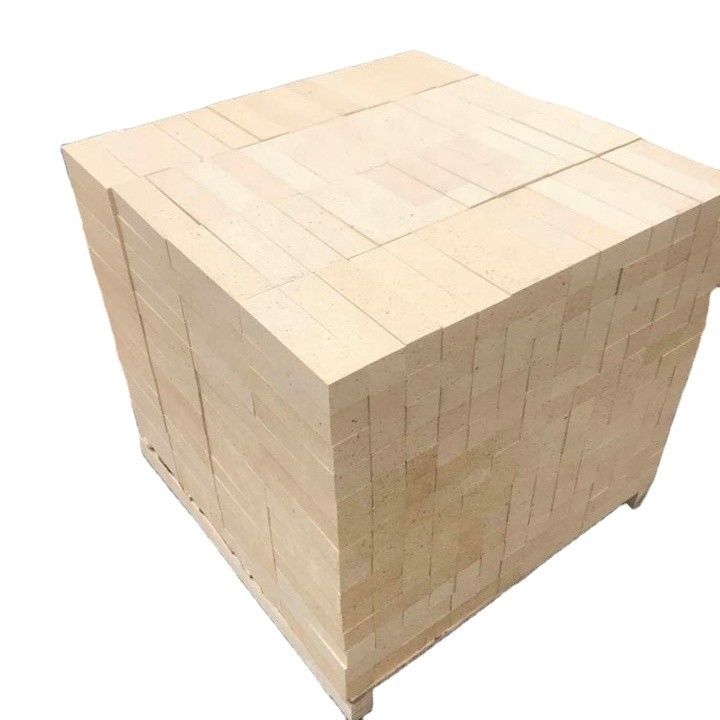

Packing of High Alumina Lining Bricks
1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000mm,
2.Load weight of each pallet: 1.5-2.0 tons,
3.230*114*65mm:512PCS/Pallet, 230*114*75mm:448PCS/Pallet.
Shipping of High Alumina Lining Bricks
1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quanlity and quantity guaranteed, and also in accordance with the contract and customer's requirment completely.
