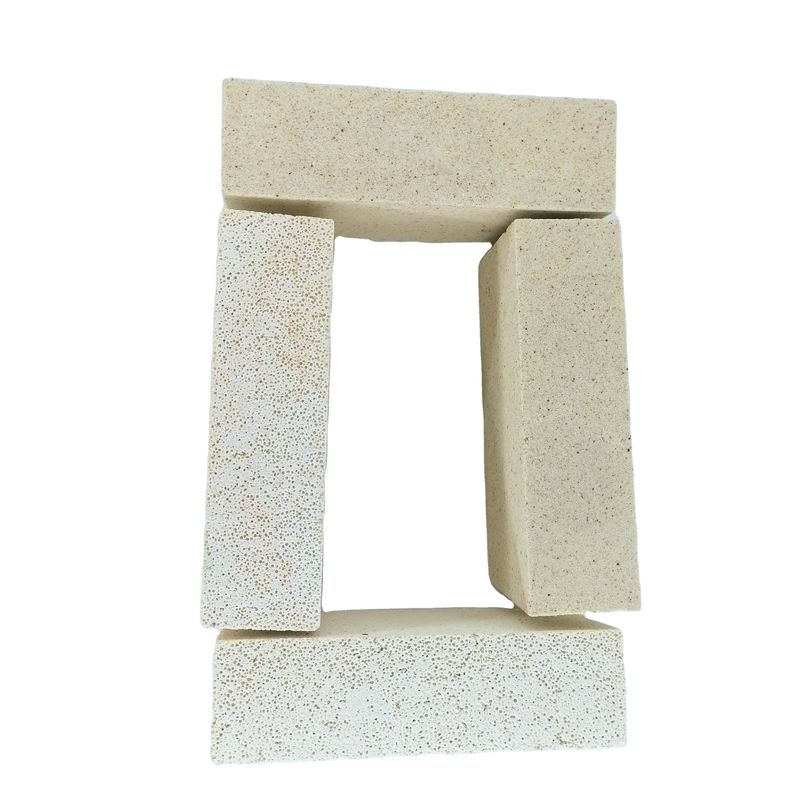

Little MgO Content Lightweight Alumina Silicate Firebrick for Annealing Furnace Durable

Name: Little MgO Content Lightweight Alumina Silicate Firebrick for Annealing Furnace Durable
Brand: Hongtai
SKU: GQ1.0
Price: 0.31 USD
Availability: InStock
Rating: 5 (171 reviews)

Product Details

Place of Origin: Henan China

Brand Name: Hongtai

Model Number: GQ1.0

Payment & Shipping Terms

Minimum Order Quantity: 1000 pieces

Price: $0.31 - $1.00/pieces

Packaging Details: stander wooden pallet

Supply Ability: 3000 Ton/Tons per Month

Get Best Price

Product Details

Product Description

Highlight:

Shape:	Brick	Material:	Silicon
SiO2 Content (%):	91min	Al2O3 Content (%):	Little
MgO Content (%):	Little	CaO Content (%):	/
Refractoriness (Degree):	1770°< Refractoriness< 2000°	CrO Content (%):	/
SiC Content (%):	/	Processing Service:	Bending, Welding, Punching, Decoiling, Cutting, Moulding
Product Name:	Silica Fire Brick	Application:	Industrial Furnaces
Color:	White	Size:	230mm114mm65/75mm
Raw Material:	SiO2	Usage:	Kiln Construction
Certificate:	ISO9001	BULK DENSITY:	0.4-1.2
Sample:	Sample Provided	Feature:	High Temperature Resistant

Shape:	Brick
Material:	Silicon
SiO2 Content (%):	91min
Al2O3 Content (%):	Little
MgO Content (%):	Little
CaO Content (%):	/
Refractoriness (Degree):	1770°< Refractoriness< 2000°
CrO Content (%):	/
SiC Content (%):	/
Processing Service:	Bending, Welding, Punching, Decoiling, Cutting, Moulding
Product Name:	Silica Fire Brick
Application:	Industrial Furnaces
Color:	White
Size:	230mm114mm65/75mm
Raw Material:	SiO2
Usage:	Kiln Construction
Certificate:	ISO9001
BULK DENSITY:	0.4-1.2
Sample:	Sample Provided
Feature:	High Temperature Resistant

Little MgO Content Lightweight Alumina Silicate Firebrick for Annealing Furnace Durable

Product Description

light weight silica brick

Also known as siliceous insulation brick. Lightweight refractory material with silicon dioxide above 91% and bulk density below 1.2g/cm3. The refractoriness and softening temperature under load are not much different from ordinary silica bricks with the same composition. However, due to the large number of pores, the compressive strength, slag resistance, and corrosion resistance are not as good as ordinary silica bricks, but the thermal shock resistance has been improved. Using finely divided silica as the raw material, the critical particle size is usually no more than 1mm, and the particles smaller than 0.5mm are no less than 90%. It is prepared by adding flammable substances to the ingredients or adopting the gas generation method to form a porous structure and firing. Can also be made into unburnt products. It is mainly used for all parts of the kiln that requires heat insulation or lightening of its own weight without direct contact with the melt, free from corrosive gas, and not subject to sudden temperature changes. It is used at high temperature and cannot be in contact with alkaline refractory materials. According to different materials, the highest operating temperature is 1200～1550℃.

manufacture

Light silica bricks and heavy silica bricks will go through each stage of the conversion of quartz to cristobalite and tridymite during firing. The following methods can completely transform the quartz, such as adjusting the time of the firing system, uniform lumps, using mineralizers (commonly used oxides Fe2O3 and CaO), or combining with previous methods. Thermal conductivity is an important performance of thermal insulation materials, it shows the thermal insulation performance and bulk density of the material. Lightweight silica brick is a very special material, in fact, it has the potential to be used in only two industrial fields. In most cases, insulating silica bricks and dense silica bricks are used as the insulating part of the structural layer. Commonly used is the heat insulation of the glass kiln, mainly the heat insulation of the kiln vault, so as to reduce heat loss and increase the efficiency of the melting process. Advantages of Lightweight Silica Brick 1. Lightweight silica bricks are incomparable to lightweight clay bricks. Lightweight silica bricks with a porosity of about 50% have a lower thermal conductivity than lightweight clay bricks. 2. The deflection temperature under load is 1620-1640℃, while the light clay brick is only 1200-1300℃, which does not shrink under high temperature. On the contrary, it expands at 1450°C (about <0.2%), and the volume is stable, while the light-weight clay brick shrinks greatly, which is easy to crack the furnace lining. 3. The kiln that can work at a temperature of 1550~1600℃ can be used for a long time; it can be directly built on the hot surface in contact with the furnace gas, and it can also be used on a large-span furnace roof; Use lightweight silica bricks. 4. The use of lightweight silica bricks in the lining of the heating furnace can shorten the heating period and reduce fuel consumption by 35% compared with the use of lightweight clay bricks. The use of lightweight silica bricks on the top of the firing kiln (inverted flame kiln) can prolong the service life of the top.

Specification

Item			Properties
Item				QG-1.0	QG-1.1	QG-1.3
Sio₂ %	≥	91	91	91
Refractoriness ℃	＞	1680	1680	1670
0.2 Mpa Refractoriness under load ℃	≥	1480	1560	1560
Cold Crushing Strength Mpa	＞	3.5	3.5	3.5
True Density g/cm³	＞	2.39	2.39	2.39
Bulk Density g/cm³	＞	1	1.1	1.2
Permanent Linear Change On Reheating(%) 1550℃×2h		0~+0.5 1450℃×2h	0~+0.5	0~+0.5
Thermal Conductivity (W/MK)350℃		0.55	0.6	0.65

Packing & Delivery

Packaging of powder shape or raw material products
1. 1 ton bags in container, 25 MT/20 'FCL.
2. 25 kg bags in container, 25 MT/20 'FCL
3. 25 kg bags in ton bags, then in container, 25 MT/20 'FCL
4. as the customer' request
Packaging of Bricks
1.on wooden pallets with plastic cover: wooden pallet size :930*930 or 1000*1000 mm,
2.Load weight of each pallet: 1.5-2.0 tons.

Shipping
1.Our packaging is as per customer’s request
2.Normal goods delivered by sea transport
3.Sample shipping by express
4.We will shipping and delivery goods timely, quality and quantity guaranteed, and also in accordance with the contract and customer's requirement completely.

Delivery:
15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom
products, the shipping time will delay.
Sample:
Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.
Payment:
It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be
approved by our clients.
