Fireclay Bricks for Industrial Furnaces Low Thermal Conductivity and Lightweight Design

Product Details

Place of Origin: Henan, China

Brand Name: HongTai

Model Number: HT

Payment & Shipping Terms

Minimum Order Quantity: 2 tons

Price: $200.00 - $500.00/tons

Supply Ability: 3000 Ton/Tons per Month Fireclay bricks

Get Best Price

Product Details

Product Description

Highlight:

Shape:	Brick	Material:	Bauxite
SiO2 Content (%):	Interentional Standard	Al2O3 Content (%):	38~48%
MgO Content (%):	0.1	CaO Content (%):	0.1
Refractoriness (Degree):	Common (1580°< Refractoriness< 1770°)	CrO Content (%):	0
SiC Content (%):	0.1	Product Name:	Lightweight Fireclay Brick
Color:	Yellow	Fireclay Bricks Standard Size:	230x114x65mm
Apparent Porosity (%) Max:	25	Cold Crushing Strength (MPa)min:	20~30
Bulk Density:	≥2.1g/cm3	Chamotte Brick Advantage:	High Refractoriness
Sample:	Freely Provided	Fireclay Bricks Application:	Industrial Furnaces Outer Layer
Keyword:	Light And Cheap	Port:	Tianjin Qingdao, Lianyungang, Ningbo, Shanghai

Shape:	Brick
Material:	Bauxite
SiO2 Content (%):	Interentional Standard
Al2O3 Content (%):	38~48%
MgO Content (%):	0.1
CaO Content (%):	0.1
Refractoriness (Degree):	Common (1580°< Refractoriness< 1770°)
CrO Content (%):	0
SiC Content (%):	0.1
Product Name:	Lightweight Fireclay Brick
Color:	Yellow
Fireclay Bricks Standard Size:	230x114x65mm
Apparent Porosity (%) Max:	25
Cold Crushing Strength (MPa)min:	20~30
Bulk Density:	≥2.1g/cm3
Chamotte Brick Advantage:	High Refractoriness
Sample:	Freely Provided
Fireclay Bricks Application:	Industrial Furnaces Outer Layer
Keyword:	Light And Cheap
Port:	Tianjin Qingdao, Lianyungang, Ningbo, Shanghai

Fireclay Bricks for Industrial Furnaces Low Thermal Conductivity and Lightweight Design

Product Description

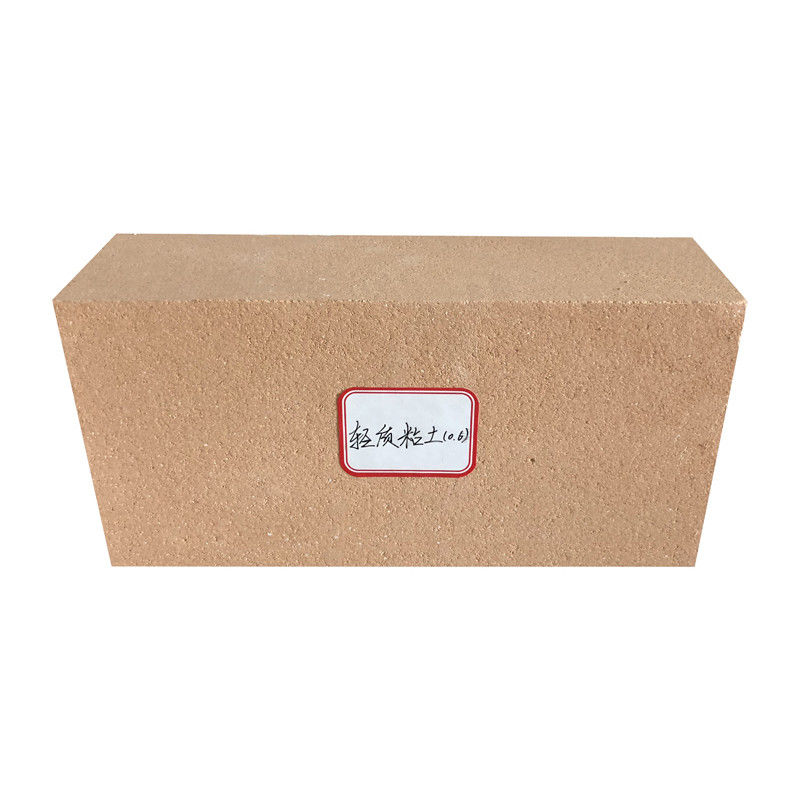

Fireclay Bricks for Industrial Furnaces Low Thermal Conductivity and Lightweight Design 0

The Al2O3 content of the lightweight fireclay bricks is generally more than 40%, and the Fe2O3 content is less than 2.0-2.5%. The clinker in the ingredients is 65-85%, and the combined clay is 35-15%. The lightweight fireclay insulation bricks is usually produced by the combustible method, and can also be formed by the chemical method or the foam method to form a porous structure.

The crushed combined clay and the finely ground clinker are mixed and ground, and then mixed with the granular clinker to prepare a semi-dry mud, which is molded under high pressure and fired in an oxidizing atmosphere at about 1400°C. The lightweight fireclay insulation bricks are weakly acidic at high temperatures. The lightweight fireclay insulation bricks are refractory materials with high porosity, low bulk density and low thermal conductivity. Thermal insulation refractories are also called lightweight refractories, which include insulation refractory products, refractory fibers and refractory fiber products.

Specification

Fireclay Bricks for Industrial Furnaces Low Thermal Conductivity and Lightweight Design 4 The technical data of lightweight fireclay brick:

Items	lightweight fireclay brick Technical Data
Code name	NG1.5	NG1.3A	NG1.3B	1	0.9	0.8	0.7	0.6	0.5
Al2O3 min%	30-46
Bulk Density g/cm3 max	1.5	1.3	1.3	1	0.9	0.8	0.7	0.6	0.5
Cold Crushing Strength Mpa min	5.88	4.41	3.92	2.94	2.45	2.45	1.96	1.47	1.18
Thermal Conductivity 350±25℃ W/m*k max	0.7	0.6	0.6	0.5	0.4	0.35	0.35	0.25	0.25
Temperature Reheating Linear Change Less than 2.0% max	1400	1400	1350	1350	1300	1250	1250	1200	1150

The bulk density of commonly used lightweight fireclay bricks is 0.5-1.3g/cm3, the compressive strength is 2.0-9.8Mpa, and the thermal conductivity is 0.221-0.442W/(m.K) (1350℃). The light weight fire clay insulation refractory bricks are characterized by high porosity, generally 40%-85%; low bulk density below 1.5g/cm3; low thermal conductivity, generally below 1.0W (m.K).

The lightweight fireclay bricks is used as an industrial furnace Thermal insulation materials can reduce heat loss in the furnace, save energy, and reduce the quality of thermal equipment. Thermal insulation refractories have poor mechanical strength, abrasion resistance and slag corrosion resistance, and are not suitable for the load-bearing structure of the kiln and direct contact with slag, charge, molten metal and other parts.

The lightweight fireclay bricks Feature:

1. Containing a large number of closed pores

2. Have a lightweight high temperature

3. Good insulation properties

4. Refiring small contraction

5. Excellent thermal shock resistance

6. Strong resistance to the corrosive gas and slag.

The lightweight fireclay bricks Advantages:

1. Low thermal conductivity.

2. High strength and resistance to corrosion.

3. Low heat capacity.

4. Low shrinkage after heavy firing.

5. High insulation.

6. High refractoriness.

7. Low density.

8. Good thermal shock resistance under high temperature.

9. Thermal insulation energy-saving effect is good.
